Mariner 75 - Page 254

6A-30 POWER TRIM 90-13645--2 495

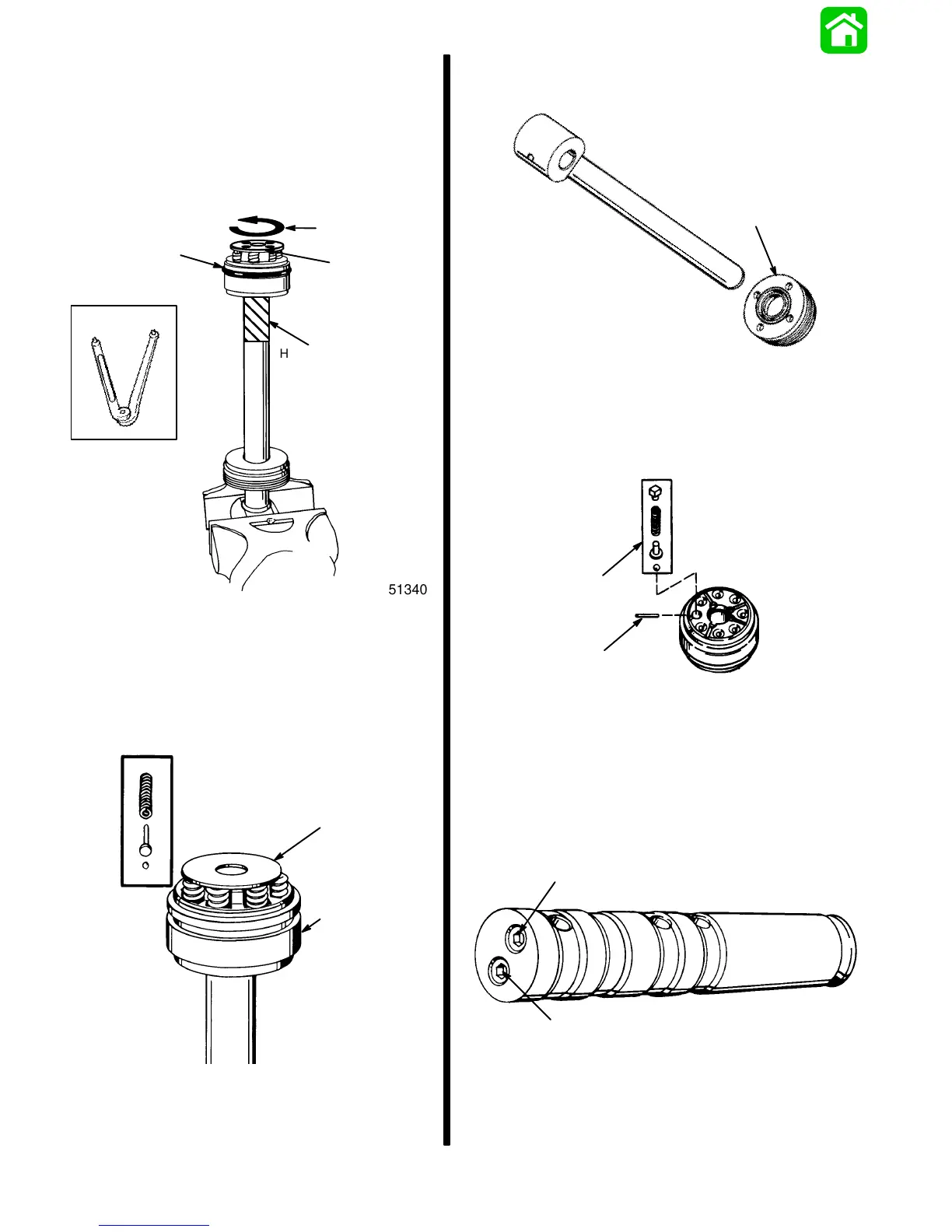

2. Clamp tilt rod in a soft jawed vise, as shown.
Remove o-ring.
Heat rod with Torch Lamp (91-63209 or
91-74042).
Using spanner wrench (91-74951), remove rod
end by turning rod end in direction shown.
91-749
51
51337
ÇÇ
ÇÇ
ÇÇ
51340
HEAT THIS AREA
a
b
c
a - O-ring
b - Rod End
c - Turn in Counterclockwise Direction
3. Lift washer and piston from rod; do not let check
valve assemblies fall.
Remove check valve assemblies.
51363
a
b
c
a - Washer
b - Piston
c - Valve Assemblies
4. Slide cap off from rod.
51376
a
a - Cap
5. Remove roll pin using a punch and hammer.
Remove check valve assembly.
a
b
a - Roll Pin
b - Check Valve Assembly
6. Remove allen plug from shaft.
IMPORTANT: Remove plug from same side as
holes in shaft.
Lubricate shaft with Automatic Transmission Fluid
(ATF) Type A or AF.
51361
DO NOT REMOVE
a
a - Allen Plug
