7B-1990-13645--2 495 OUTBOARD MOTOR INSTALLATION/ATTACHMENTS

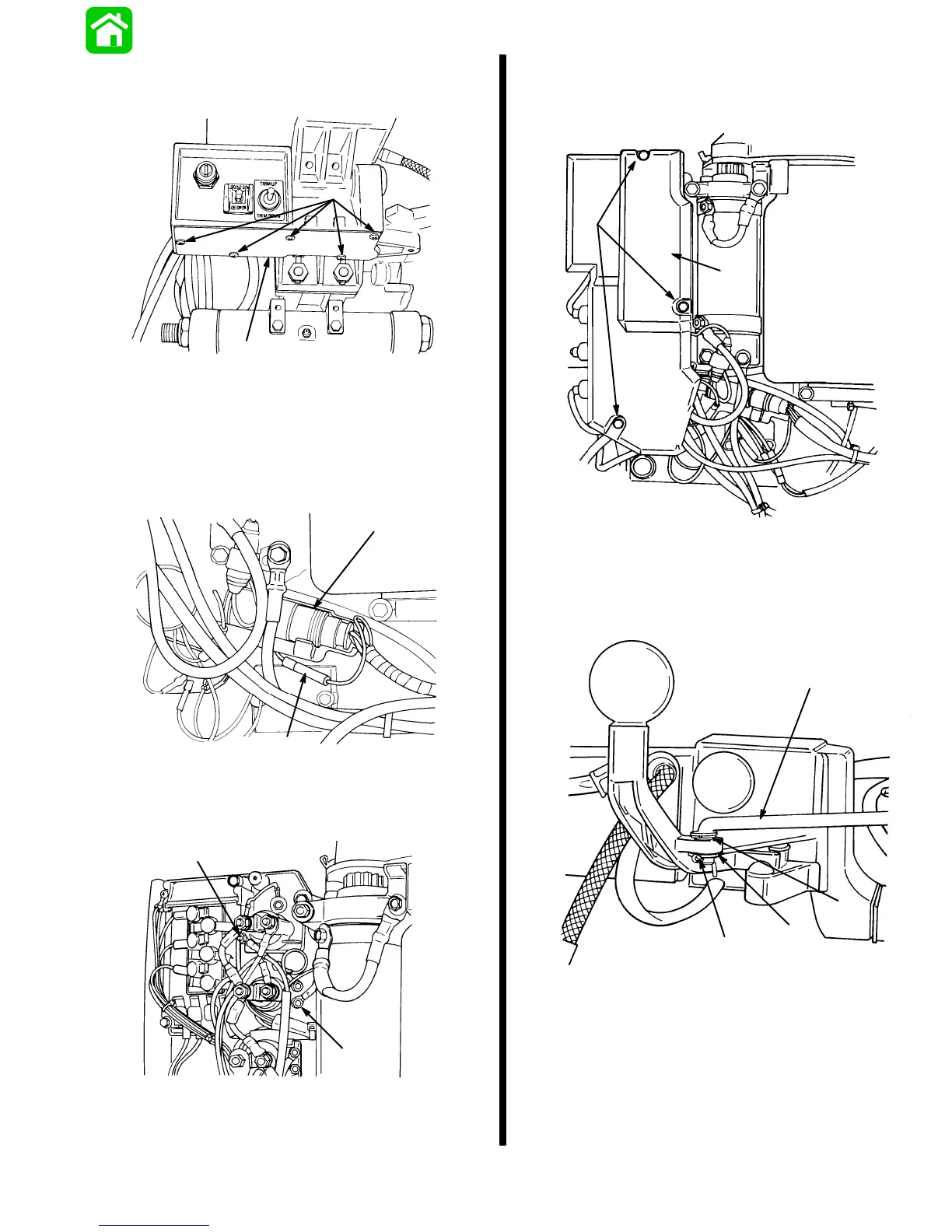

11. Secure access cover to tiller bracket with five
screws. DO NOT OVERTIGHTEN SCREWS.
a
51626
b
a - Access Cover
b - Screws
12. Connect switch harness plug to engine harness
plug.
Reconnect PURPLE bullet connector.
51623
a
b
a - Switch Harness Plug
b - PURPLE Bullet Connector
13. Reconnect trim switch leads to trim solenoids.
51622
a
b
a - BLUE/WHITE Lead
b - GREEN/WHITE Lead
14. Reinstall electrical panel access cover and
secure with screws. Torque screws to 30 lb. in.
(3.4 Nm).
51621
a
b
a - Panel
b - Screws - Torque to 30 lb. in. (3.4 Nm)
15. Reconnect shift link rod to shift lever using bush-
ing, washer and cotter key.
51624
a
b
c
d
a - Shift Link Rod
b - Bushing
c - Washer
d - Cotter Key
To Next Page
