Mariner 75 - Page 98

3A-1190-13645--2 495 FUEL SYSTEM AND CARBURETION

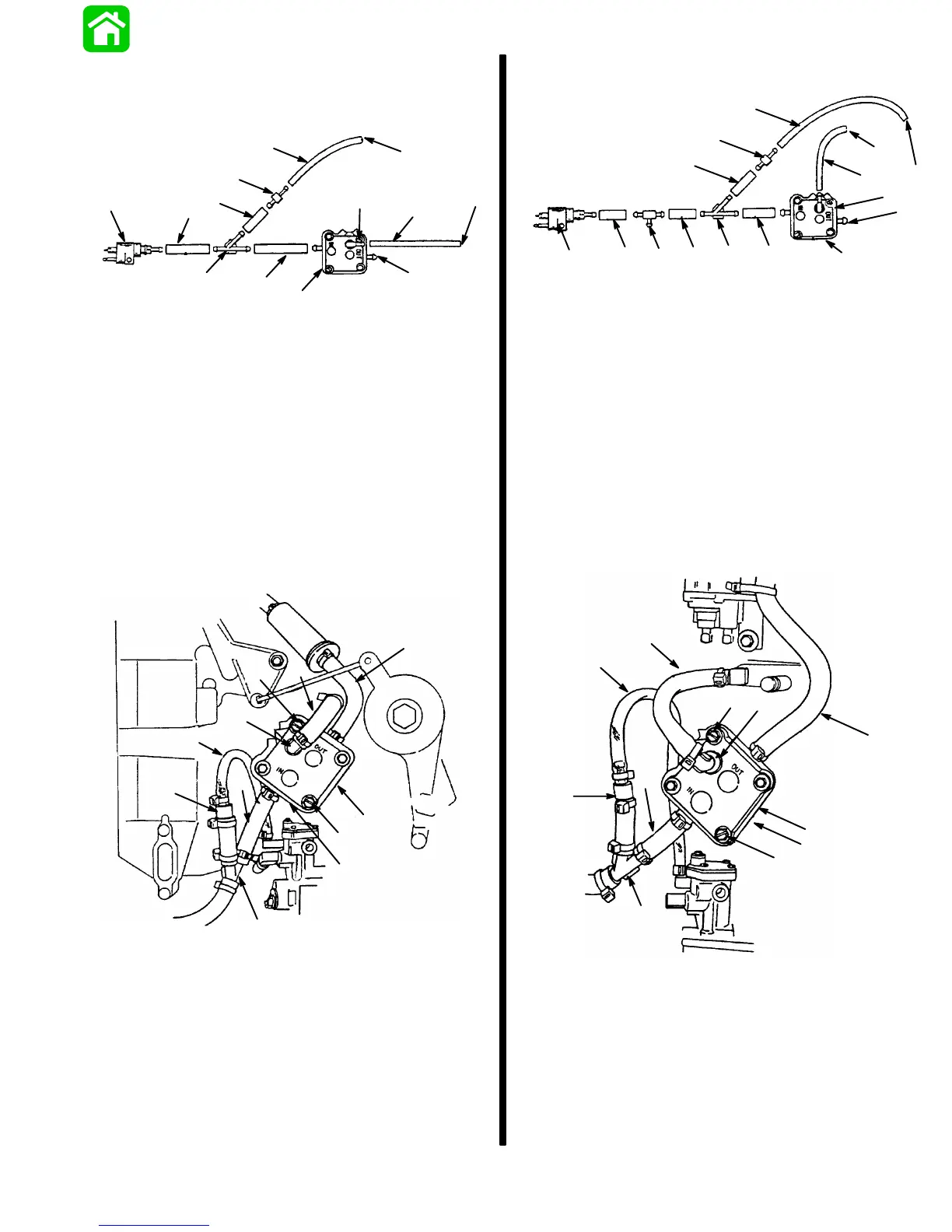

Installation of Design 2 Fuel Pump
MODEL 70, 75, 80, 90
51519
a
b
c
d
e
f
g
h
i
j
k
l
m
a - Clear Tube [5.5 in. (139.7mm)]
b - To Oil Pump Outlet
c - Check Valve
d - Hose [1.5 in. (38.1mm)]
e - Hose [2.5 in. (63.5mm)]
f - Fuel Line Connector
g - Y-Fitting
h - Hose [3 in. (76.2mm)]
i - Fuel Pump
j - 90 Degree Elbow
k - Fuel Outlet to Filter
l - Hose [2.5 in. (63.5mm)]
m- To Pulse Fitting on Powerhead
MODEL 70, 75, 80, 90
51516
a
b
c
d
e
f
g
h
i
j
h
a - Fuel Pump
b - Pulse Hose
c - Inlet Hose
d - Outlet Hose (Replace with Molded Hose)
e - Elbow [Apply PERFECT SEAL (92-34227--1) to threads]
f - Check Valve
g - Y-Connector
h - Screws [Torque to 55 lb. in. (6.2 Nm)]
i - Clear Tubing [5.5 in. (139.7mm)]
j - Gasket (Cylinder Block to Fuel Pump) (HIDDEN)
MODEL 100, 115
51519
a
b
c
d
efg hi j
k
l
n
m
f
a - Clear Tube [8 in. (203.2mm)]
b - To Oil Pump Outlet
c - Check Valve
d - Hose [1.5 in. (38.1mm)]
e - Fuel Connector
f - Hose [1.5 in. (38.1mm)]
g - T-Fitting (EXISTING)
h - Y-Fitting
i - Hose [1.75 in. (44.5mm)]
j - Fuel Pump
k - Fuel Outlet to Filter
l - 90 Degree Elbow
m- Hose [4 in. (101.6mm)]
n - To Pulse Fitting on Powerhead
MODEL 100, 115
51516
b
c
d
e
f
g
i
a
j
h
h
a - Fuel Pump
b - Pulse Hose
c - Inlet Hose
d - Outlet Hose
e - Elbow [Apply PERFECT SEAL (92-34227--1) to threads]
f - Check Valve
g - Y-Connector
h - Screws [Torque to 55 lb. in. (6.2 Nm)]
i - Clear Tubing [8 in. (203.2mm)]
j - Gasket (Cylinder Block to Fuel Pump) (HIDDEN)
