Page 16
8.2 OUTPUT MANAGEMENT
GSW2 PLUS supports the possibility to report alarms from inputs and any other events locally via 2
outputs. The behavior is defined using next parameters
8.2.1 OS parameters
GSW2 PLUS device has 2 dedicated relay supported outputs. Outputs can be configured to different
behavior:
OSx = 0 – Disabled
OSx = 1 – Bi-stable toggle mode
OSx = yyyy – Mono-stable pulse mode ( duration in seconds )
Typical connection for the output:

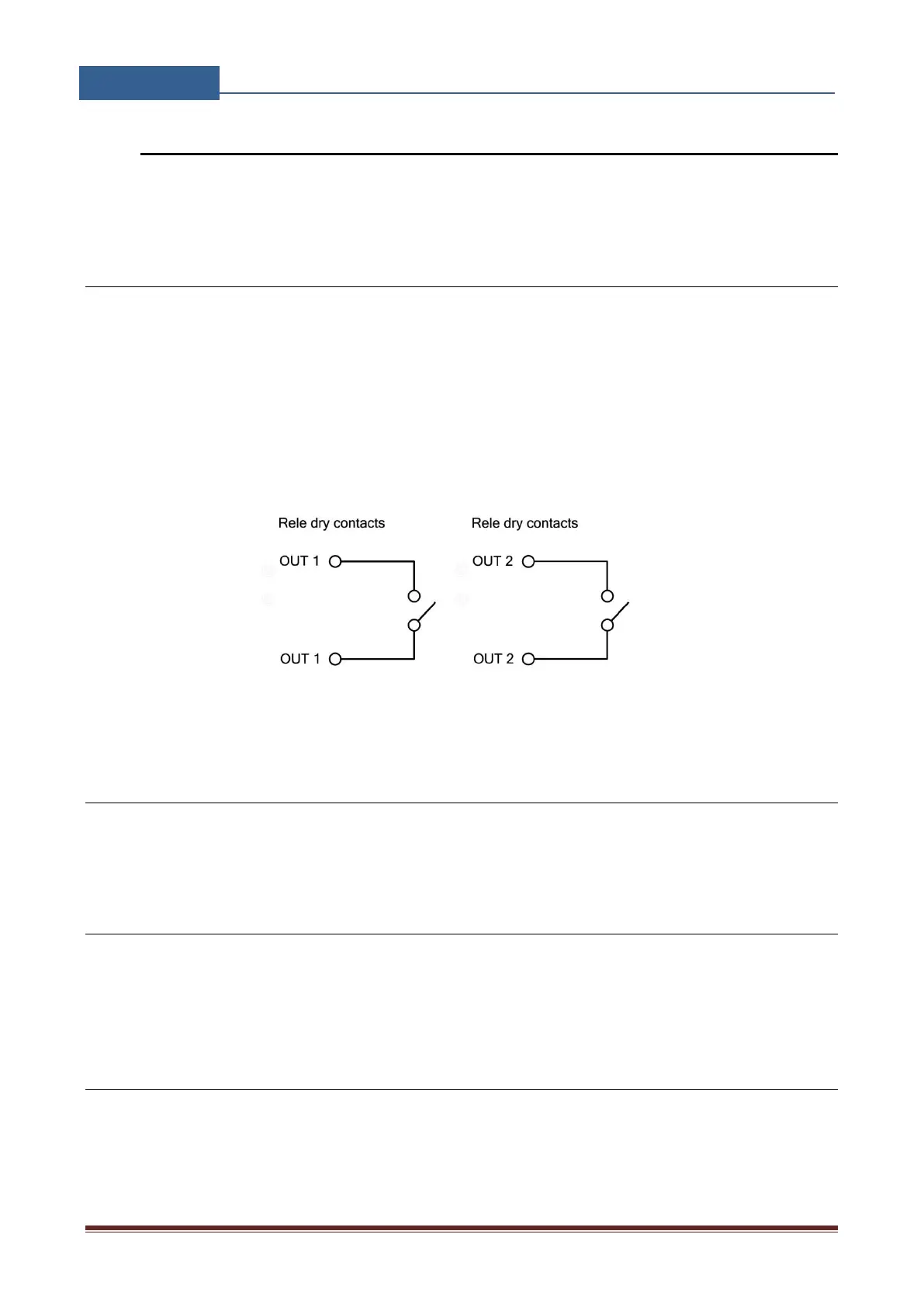

Figure 3: Output Connection diagram
8.2.2 OD parameters
OD parameter is used to link the alarm event directly to output. Direct linking can be done on input
alarm events and some other internal events.
8.2.3 OP parameters
Parameters are used to invert the polarity of the outputs.
0 – normal
1 – inverted
8.2.4 OTS and OTE parameters
Parameters are used to define general time control on the outputs. Parameters are used to define
time window for outputs to operate in case of remote control
