ZEUS4-VD
INSTALLATION MANUAL
12
11.2 ALARM SUPPORT
Alarm reporting is supported by group of different parameters. First section is used to define the
relations needed for alarm to be trigged. The second section is used to report alarm.
11.2.1 IN Parameters
Alarm and reset input can be triggered in 4 different ways. The status of the input can either be
normal closed (N.C) or normal open (N.O.) with positive (+ 12V) or negative (GND) voltage.
When you need the input feedback information it is possible to receive SMS when input returns
from alarm to normal position. To receive return SMS use IN=4, 5 or 6.
 IN = 0 – Normal Open – triggered with negative voltage (GND)
 IN = 1 – Normal Close – breaking negative or positive voltage loop
 IN = 2 – Normal Open – triggered with positive voltage (+ 12VCC)
 IN = 3 – Input disable
 IN = 4 = IN = 0 + input reset SMS
 IN = 5 = IN = 1 + input reset SMS
 IN = 6 = IN = 2 + input reset SMS
INPUT 1-4
N.O.
Contact
GND
INPUT 1-4
N.O.
Contact
+12V DC
INPUT 1-4
N.C.
Contact
INPUT 1-4
N.O.
Contact
+12V DC

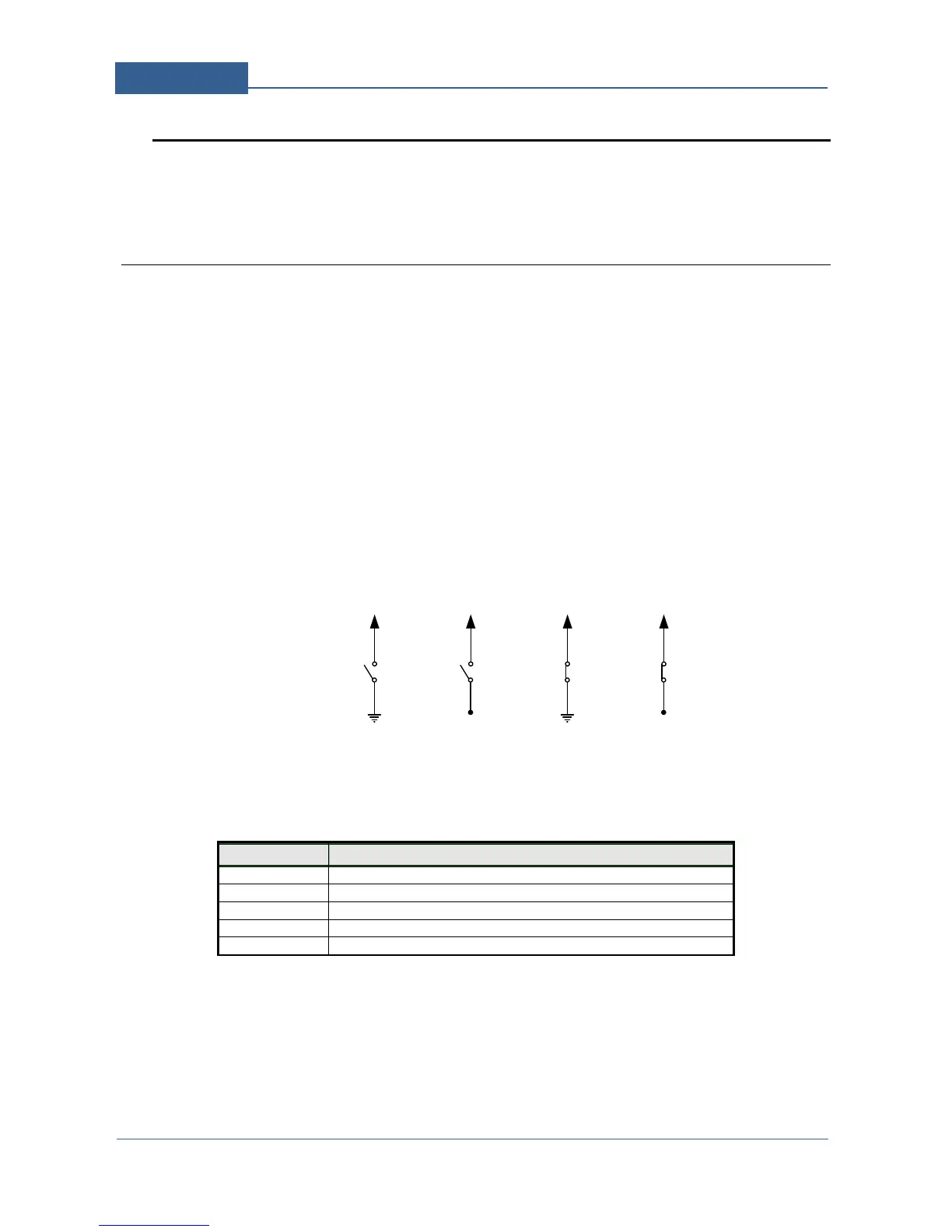

Figure 3: Input Connection diagram
Table of parameters:
Name
Comment
ION
System arm/disarm control
IN1
Input 1 control
IN2
Input 2 control
IN3
Input 3 control
IN4
Input 4 control
Table 3: IN parameters
N.C.
Contact
