Masimo Rad-97 Service Manual

Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 16 www.masimo.com

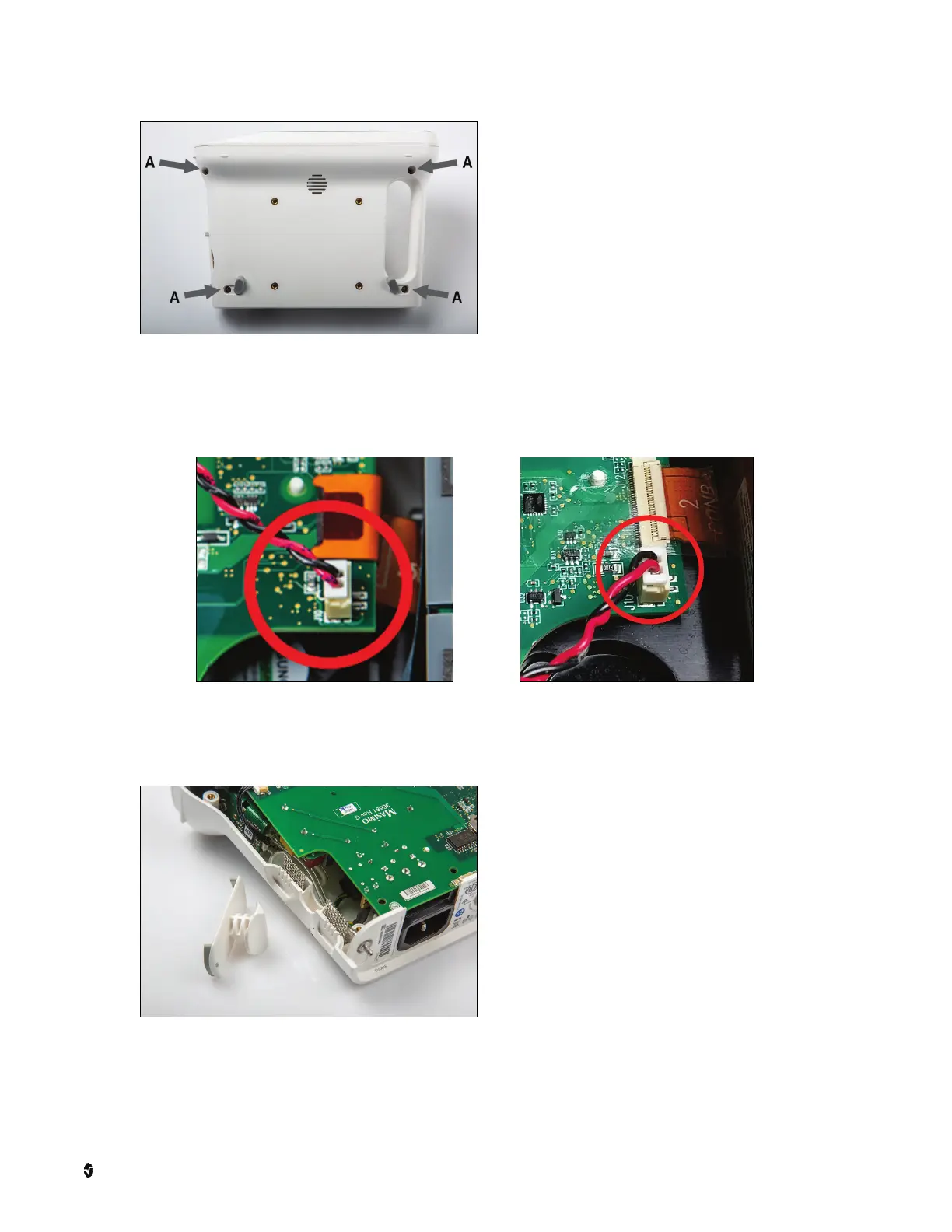

4. Using the Allen wrench, remove the four (4) case screws (A).
5. Separate the case halves by gently pulling upwards on the loose case half. Take care not to pull the speaker cable out when lifting this case half.
6. Disconnect the speaker connector from the circuit board and set the case half aside.
Note: Use care to not lose the case screws when handling the case half.
Speaker Connector Rad-97 Version 1 Speaker Connector Rad-97 Version 2
7. Remove the swivel foot from the case by pulling upwards (Version 1 shown, Version 2 similar).
8. After disassembly, follow the procedure for the service required.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
