Masimo Rad-97 Service Manual

Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 17 www.masimo.com
Reassembly

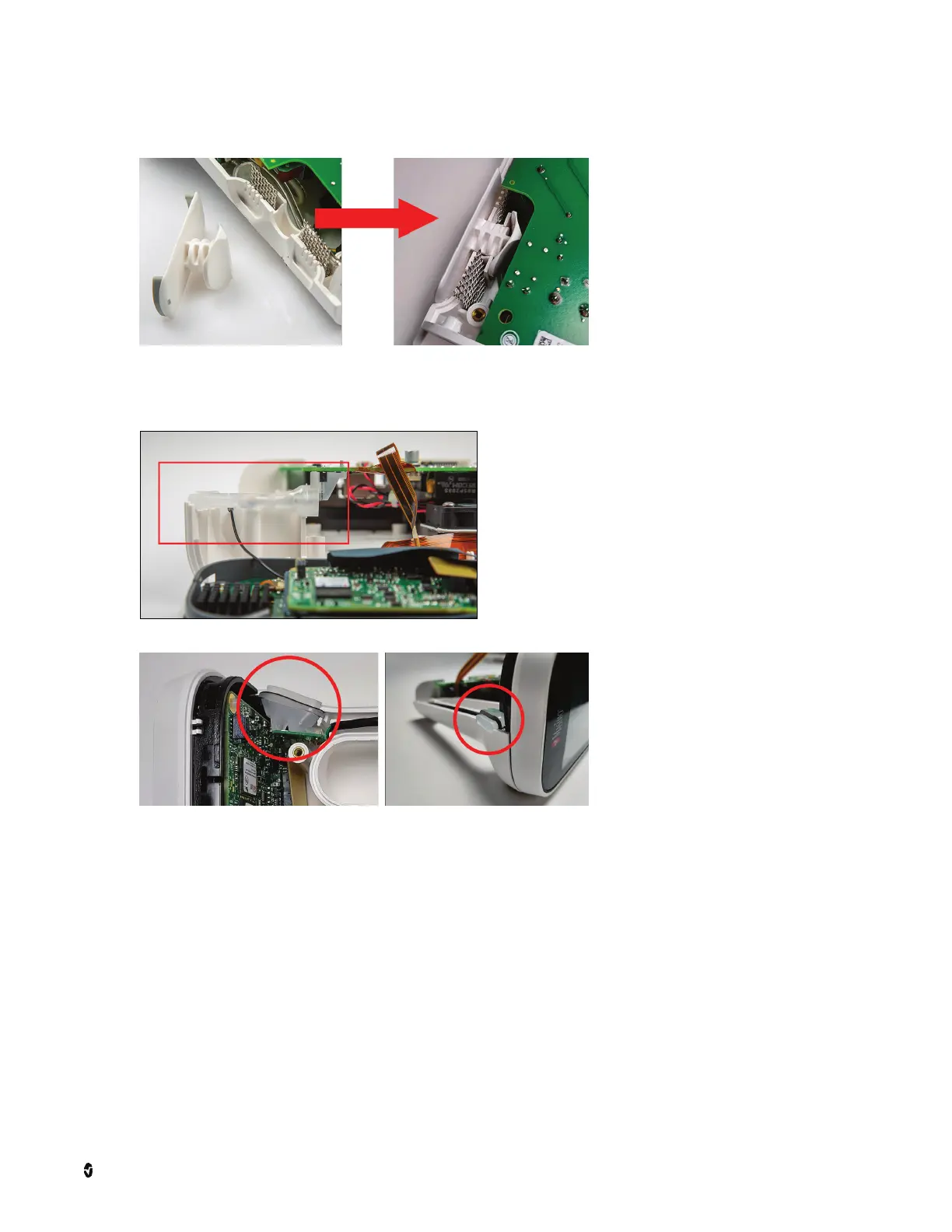

1. If removed, install the swivel foot into the case (Version 1 shown, Version 2 similar).
2. Verify that the status light is oriented in the case properly as shown.
• Status Light Rad-97 Version 1
• Status Light Rad-97 Version 2
3. Verify that all cable connections within the device are securely connected before proceeding.
• If any cables are not securely connected, adjust the cable such that it is reconnected securely.
4. For Rad-97 Version 1: Verify that this component in the picture below fits within the allotted slot in the chassis before proceeding.
If the component is not aligned properly, push it into place gently.
• In image A, the component sits within the slot and is not protruding outside of the designated area. This is the correct placement.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
