Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 30 www.masimo.com

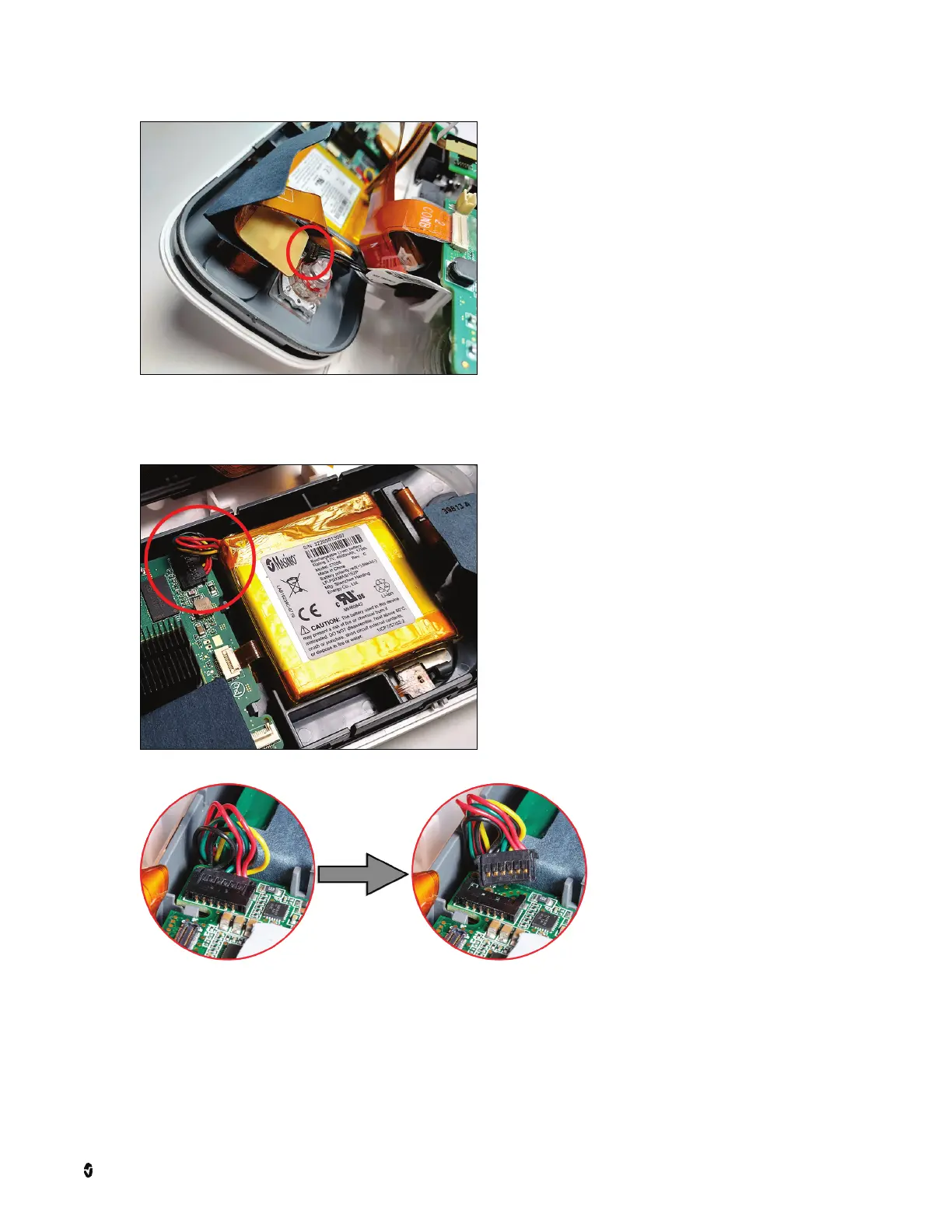

6. On Rad-97 with NomoLine Capnography, disconnect the capnography module electrical connector.
7. On all models, rotate the faceplate and place it face-down on the anti-static mat. Use care not to damage the screen during battery replacement.
8. Disconnect the battery connector from the circuit board by pulling towards the battery.
Note: Version 1 shown below, Version 2 is similar.
