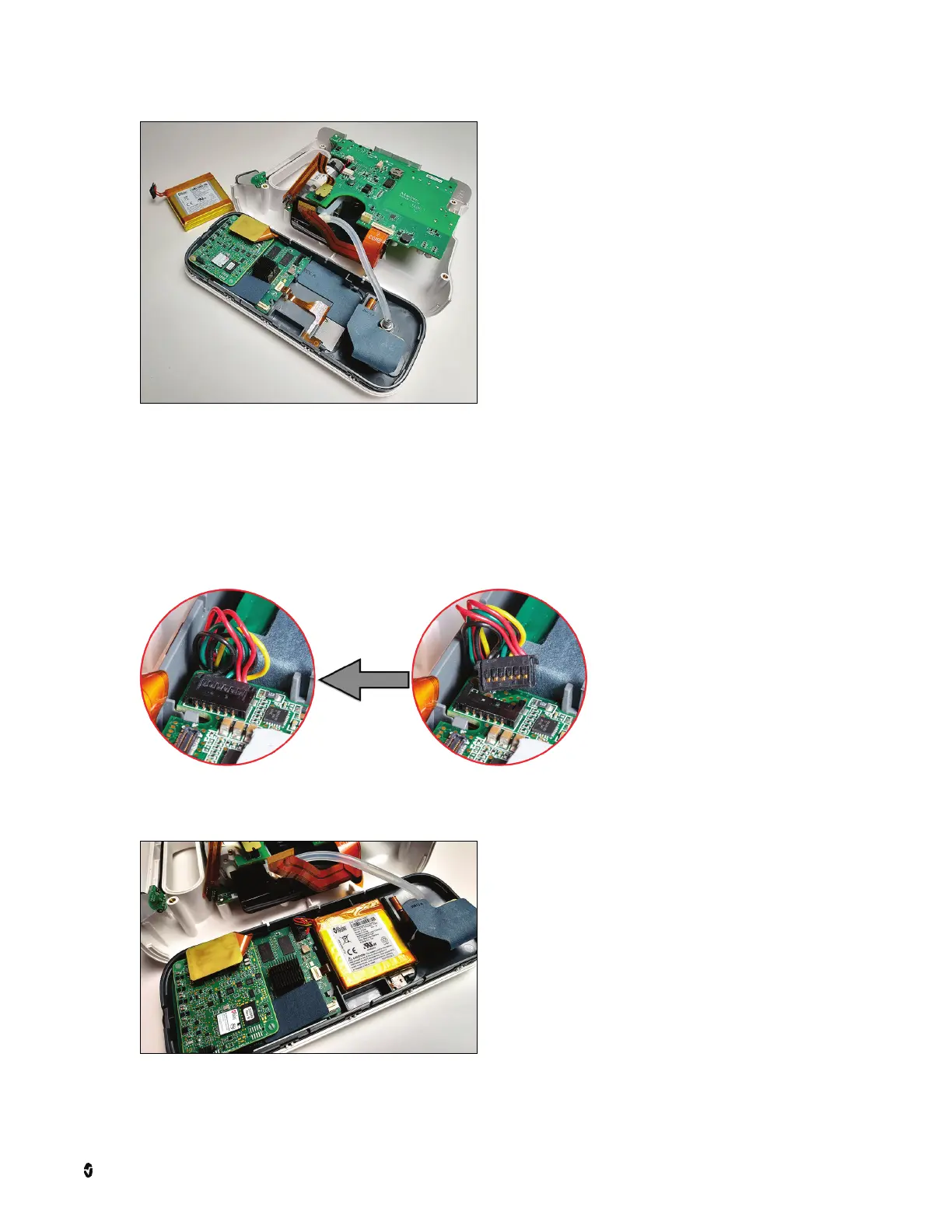

9. Pull up and remove the battery from the Rad-97 faceplate. Note the position of the battery for installation.
10. This completes the battery removal procedure for Rad-97 Version 2.
Battery Installation (Version 2)
1. Prepare the new battery for installation by removing from the packaging.
2. Attach the battery connector.
Note: Version 1 shown, Version 2 is similar.
3. Noting the battery orientation during removal, install the battery into the Rad-97 faceplate at an angle and place it such that it fits snugly inside the slot. Rad-97
with noninvasive blood pressure (NIBP) shown, others similar.
