Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 32 www.masimo.com

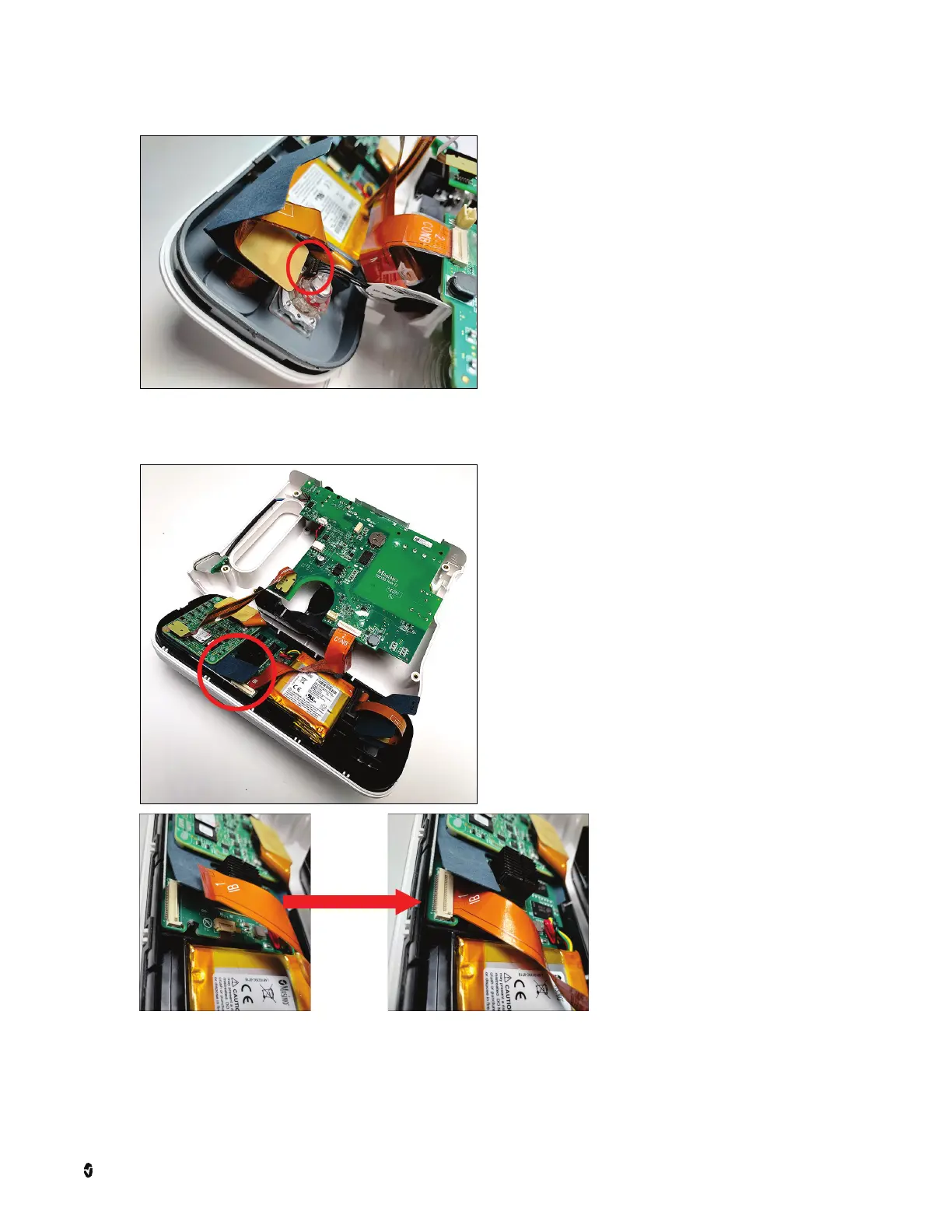

4. For Rad-97 with NomoLine Capnography, reconnect the cable to the capnography module. Needle-nose pliers may be necessary to position the cable
correctly.
5. For all models, reconnect the ribbon cable by inserting it all the way into the connector, and then folding the tab downward to secure the cable into place.
Double check to make sure that the cable cannot slide out of its position once this step is complete.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
