Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 43 www.masimo.com

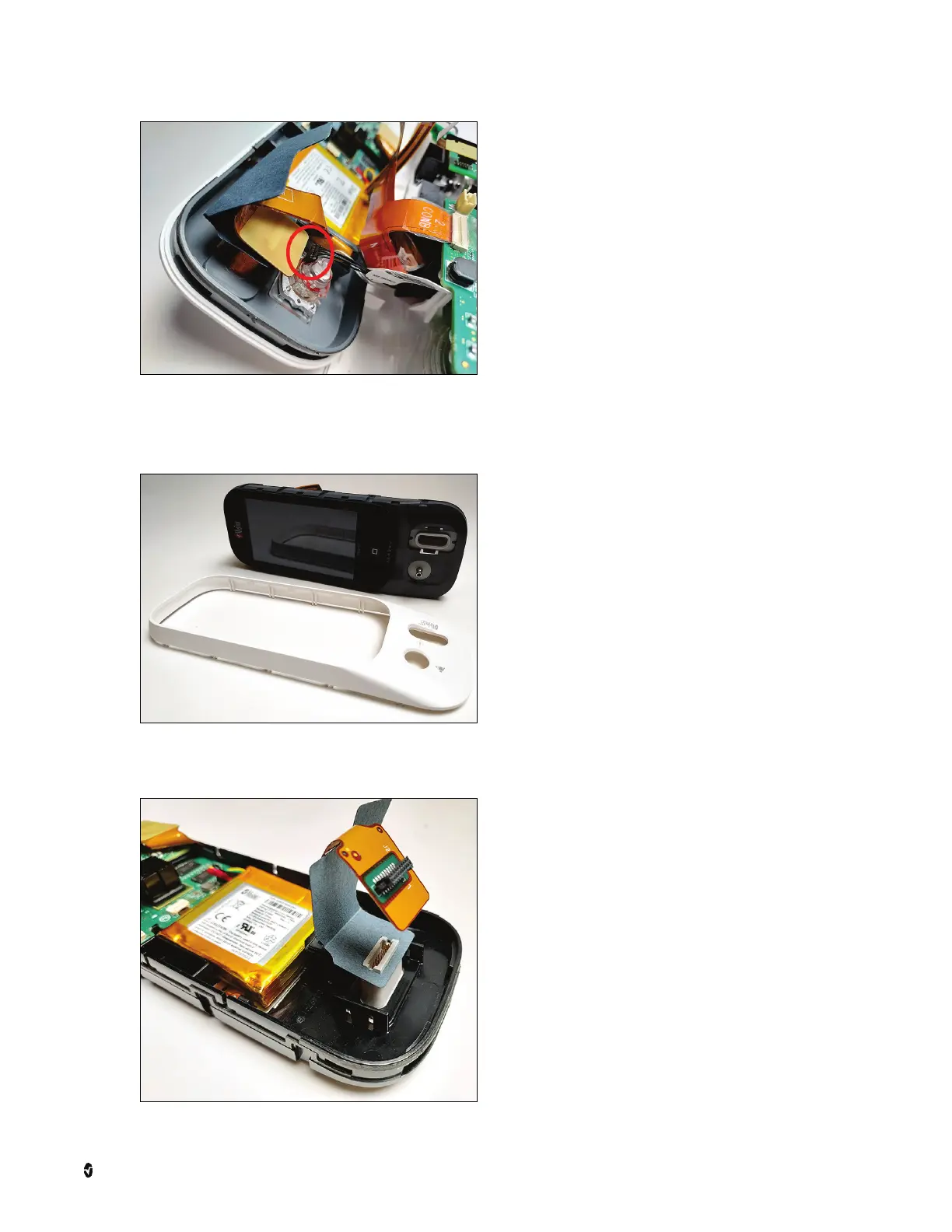

6. On Rad-97 with NomoLine Capnography, disconnect the capnography module electrical connector.
7. For all models, remove the faceplate cover from the front assembly by carefully using two hands, one to hold the white faceplate, and the other to hold the front
assembly, and pulling them gently apart to separate them.
Note: Rad-97 with NIBP shown, others similar.
8. Fold the insulating sheet away from the connector and unplug the connector from the back of the TB-20. Remove the insulator sheet after unplugging the
connector.
