Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 42 www.masimo.com

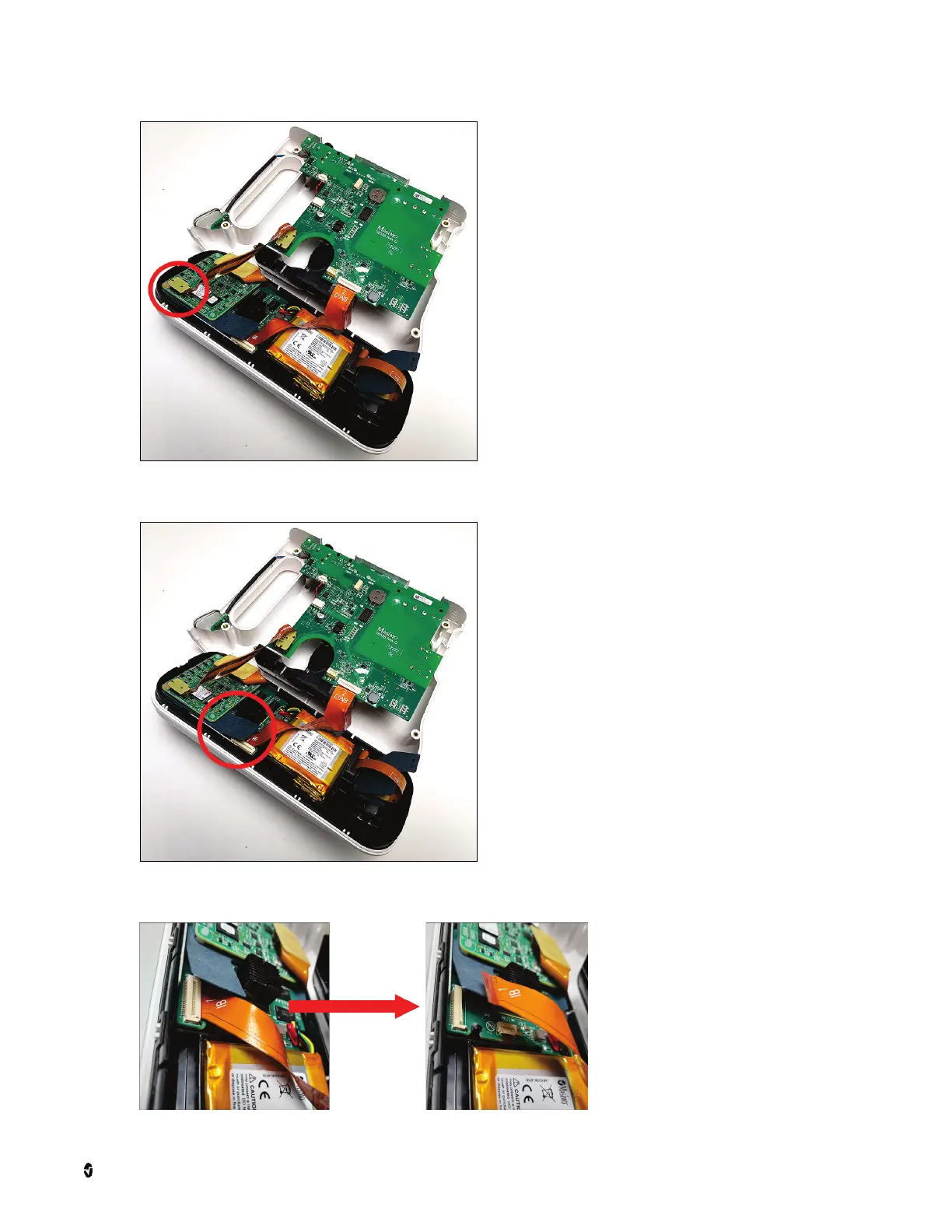

3. Carefully disconnect the ribbon cable from the circuit board.
4. Move the insulator sheet away to expose the ribbon cable connection.
5. Remove the ribbon cable from its connection to the board by lifting the tab and gently pulling the cable out from its position.
