Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 41 www.masimo.com

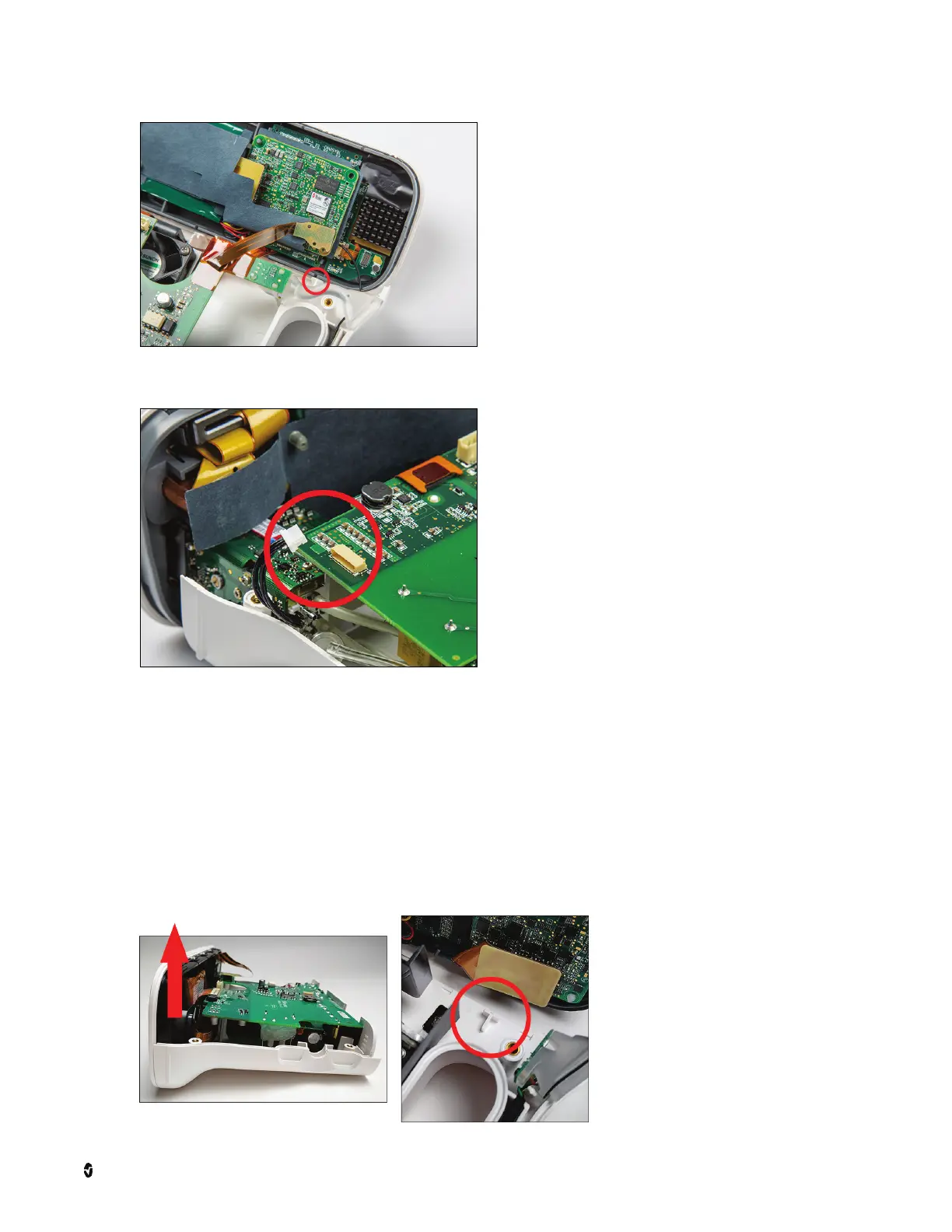

• On Rad-97 with NomoLine Capnography, slide the capnography module into its place before sliding the cover down.
9. On Rad-97 with NomoLine Capnography, connect the capnography module electrical connector.
10. On all models, reassemble the device, perform the electrical safety testing and confirm proper operation as instructed in the procedure for Reassembly on page
17.
TB-20 Connector Removal (Version 2)
1. Disassemble the Rad-97 as instructed in Disassembly on page 15.
2. Lift the faceplate upwards to disengage from the plastic T connections.
CAUTION: Use care not to pull the bezel off of the faceplate when removing from the case.
• On Rad-97 with noninvasive blood pressure, the NIBP tube can remain connected during the TB-20 replacement procedure.
• On Rad-97 with NomoLine Capnography, the capnography tube can remain connected during the TB-20 replacement procedure.
