Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 40 www.masimo.com

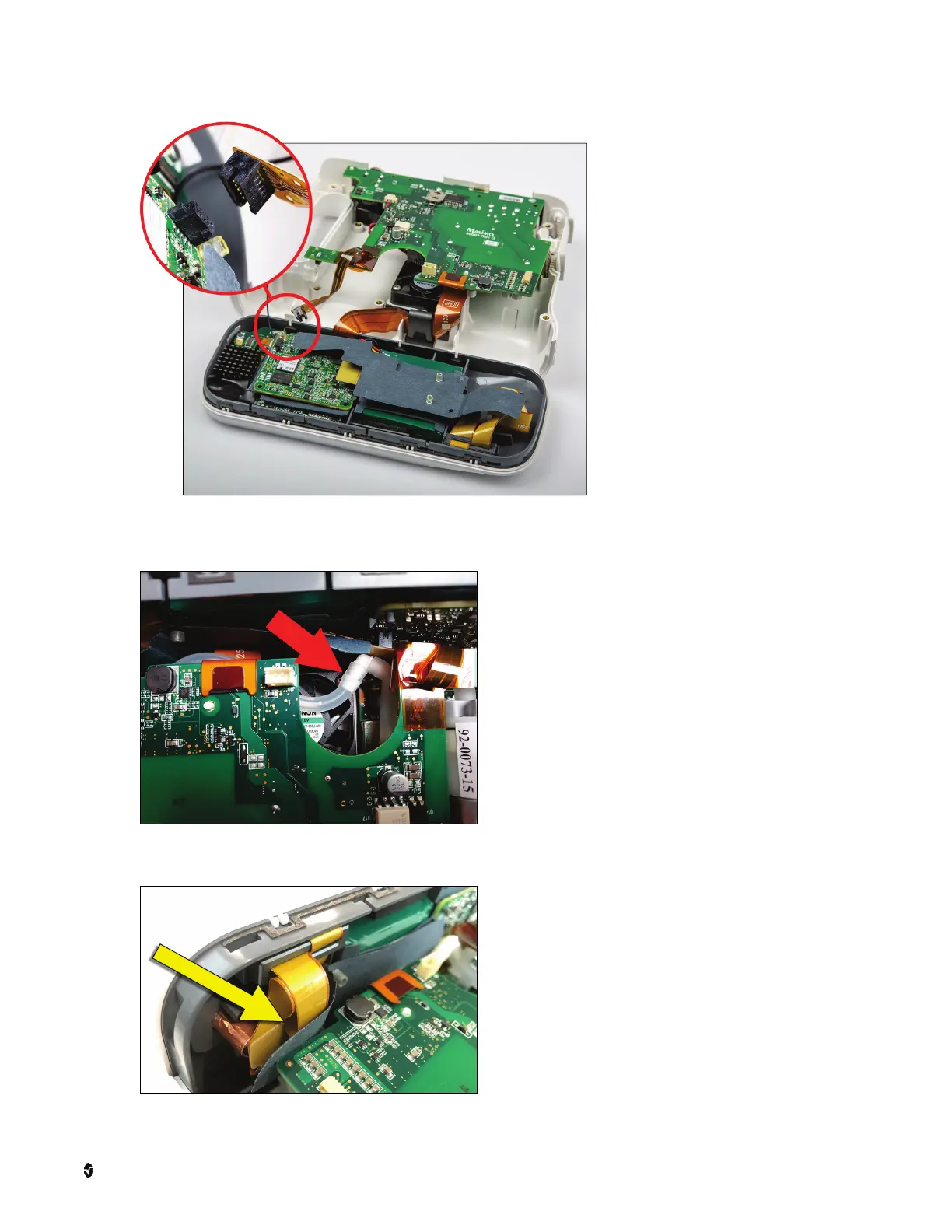

5. Reconnect the ribbon cable to the circuit board on the face plate.
6. On Rad-97 with noninvasive blood pressure, route the NIBP hose as shown below the circuit board. Ensure the hose is not pinched, stretched or will not
become restricted or pinched when the case halves are put back together.
7. If applicable, ensure the ribbon cable is inserted below the insulator as shown.
8. On all models, rotate the faceplate and attach to the case at the T connections as shown. Slide down to fully engage the connections in the case.
