TB-20 Connector Installation (Version 2)
1. Prepare the new TB-20 connector and insulator for installation by removing from the packaging.
2. Insert the TB-20 connector into the slot until the connector snaps into place.

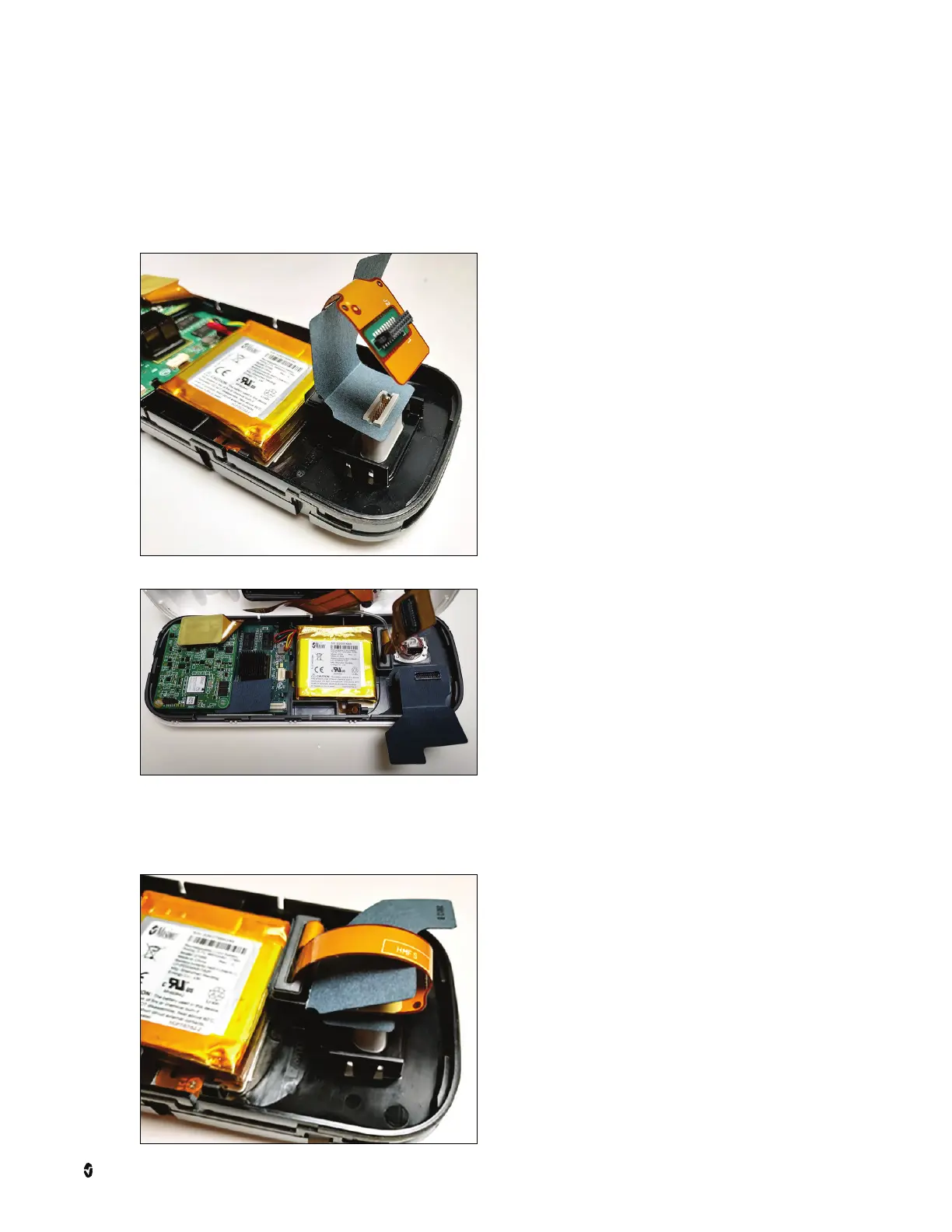

3. Insert the insulator such that the back of the connector fits through the slot in the insulator sheet, and the longer part of the insulator is oriented as shown in the
pictures.
Rad-97 base model
Rad-97 with NIBP and Rad-97 with NomoLine Capnography
4. Plug the ribbon cable to the back of the TB-20 connector. Take care to connect the plug all the way, but not to push it too hard such that the TB-20 connector
ejects from the front assembly. Cover the connector with the insulator sheet by folding it back over the connector.
Note: Rad-97 base model shown, others similar.
