Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 46 www.masimo.com

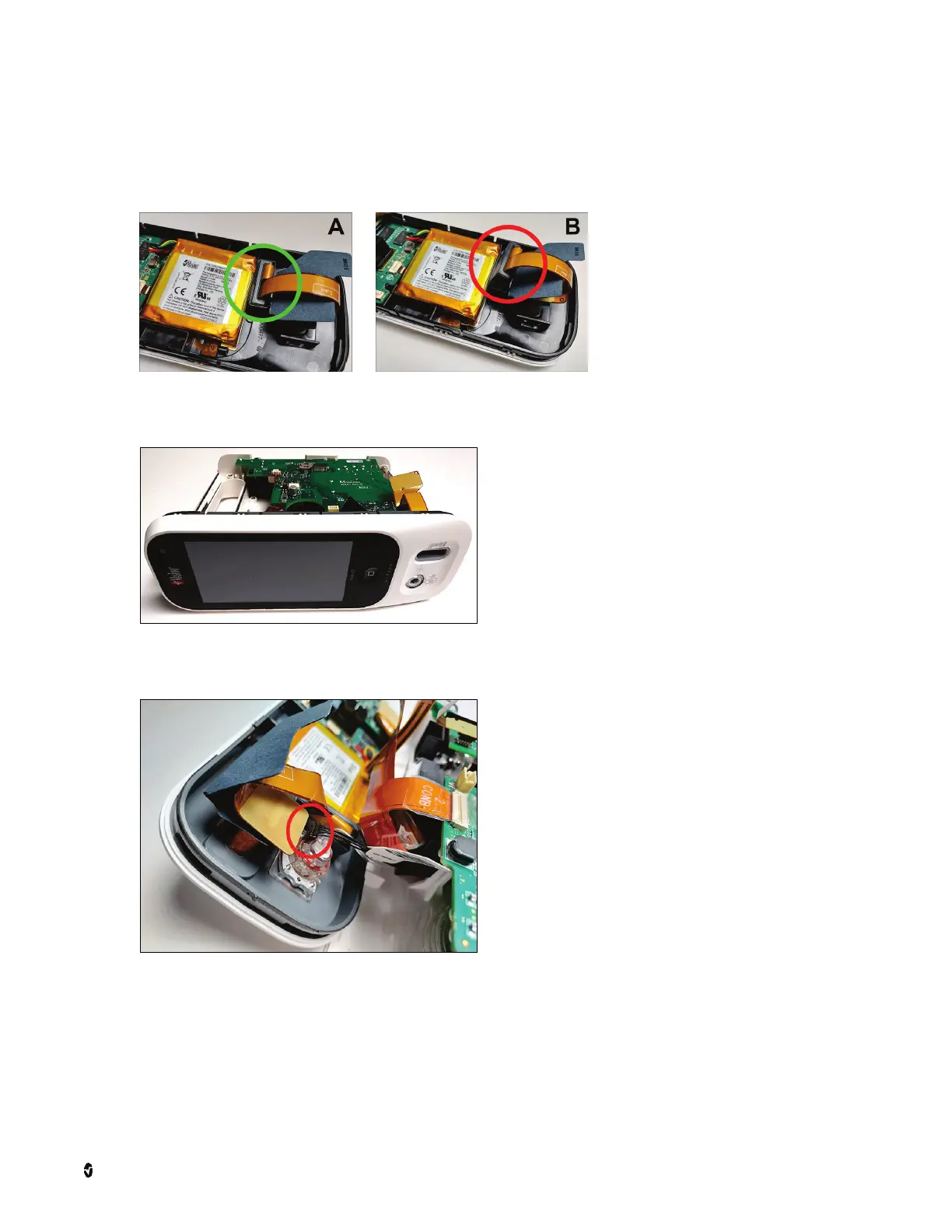

5. Verify that this component in the picture below fits within the allotted slot in the chassis before proceeding. If the component is not aligned properly, push it into
place gently.
• In image A, the component sits within the slot and is not protruding outside of the designated area.
• In image B, the component is improperly aligned and protruding outside of the designated area.
6. Put the faceplate back onto the front assembly of the Rad-97 by lining up the TB-20 port slot, (the capnography/NIBP plug if applicable), and all four edges
correctly and pressing firmly until it snaps into place.
7. For Rad-97 with NomoLine Capnography, reconnect the cable to the capnography module. Needle-nose pliers may be necessary to position the cable
correctly.
