Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 47 www.masimo.com

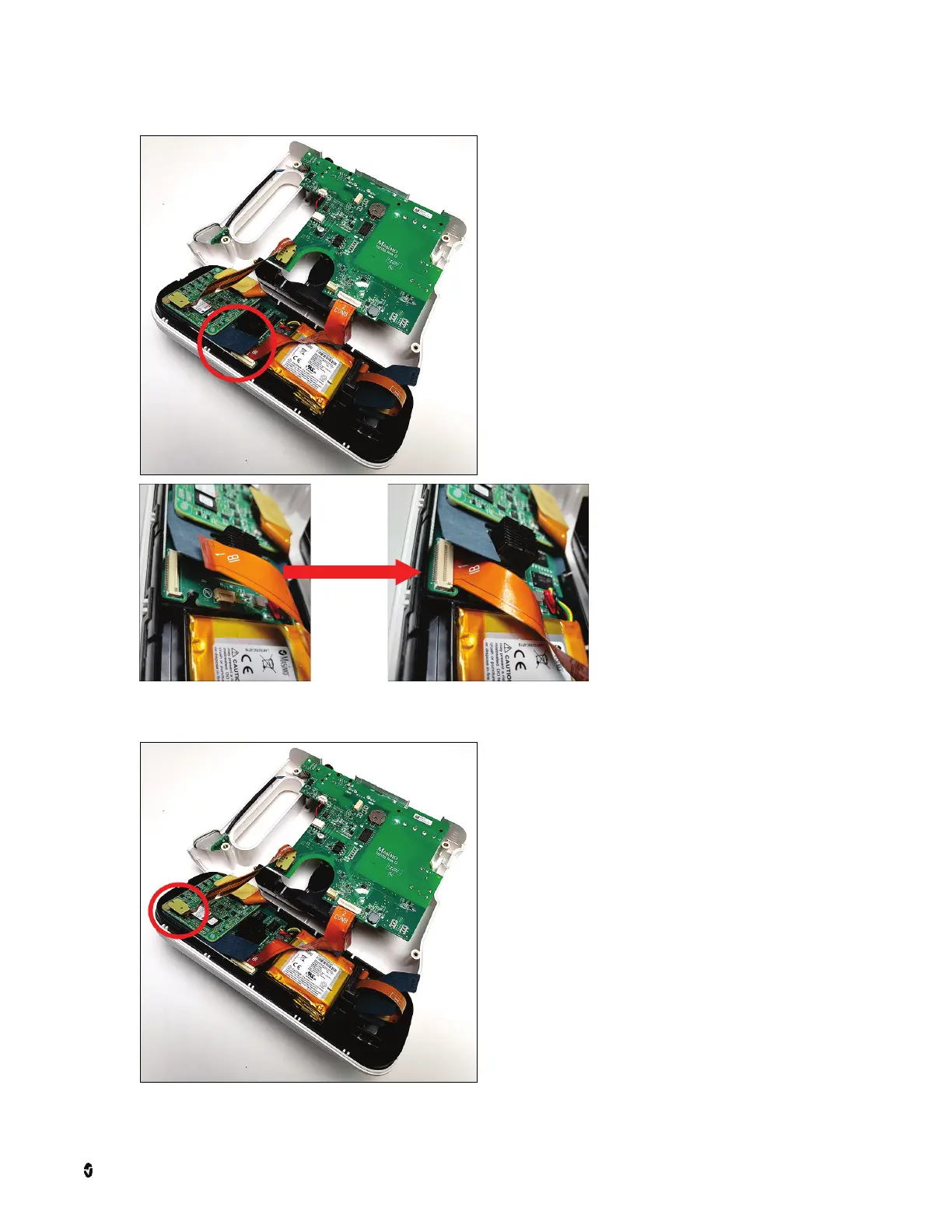

8. For all models, reconnect the ribbon cable by inserting it all the way into the connector, and then folding the tab downward to secure the cable into place.
Double check to make sure that the cable cannot slide out of its position once this step is complete.
9. Reconnect the ribbon cable to the circuit board on the faceplate.
10. If this component becomes loose as shown in the picture below, reposition it such that it fits within the allotted space below the board.
