Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 48 www.masimo.com

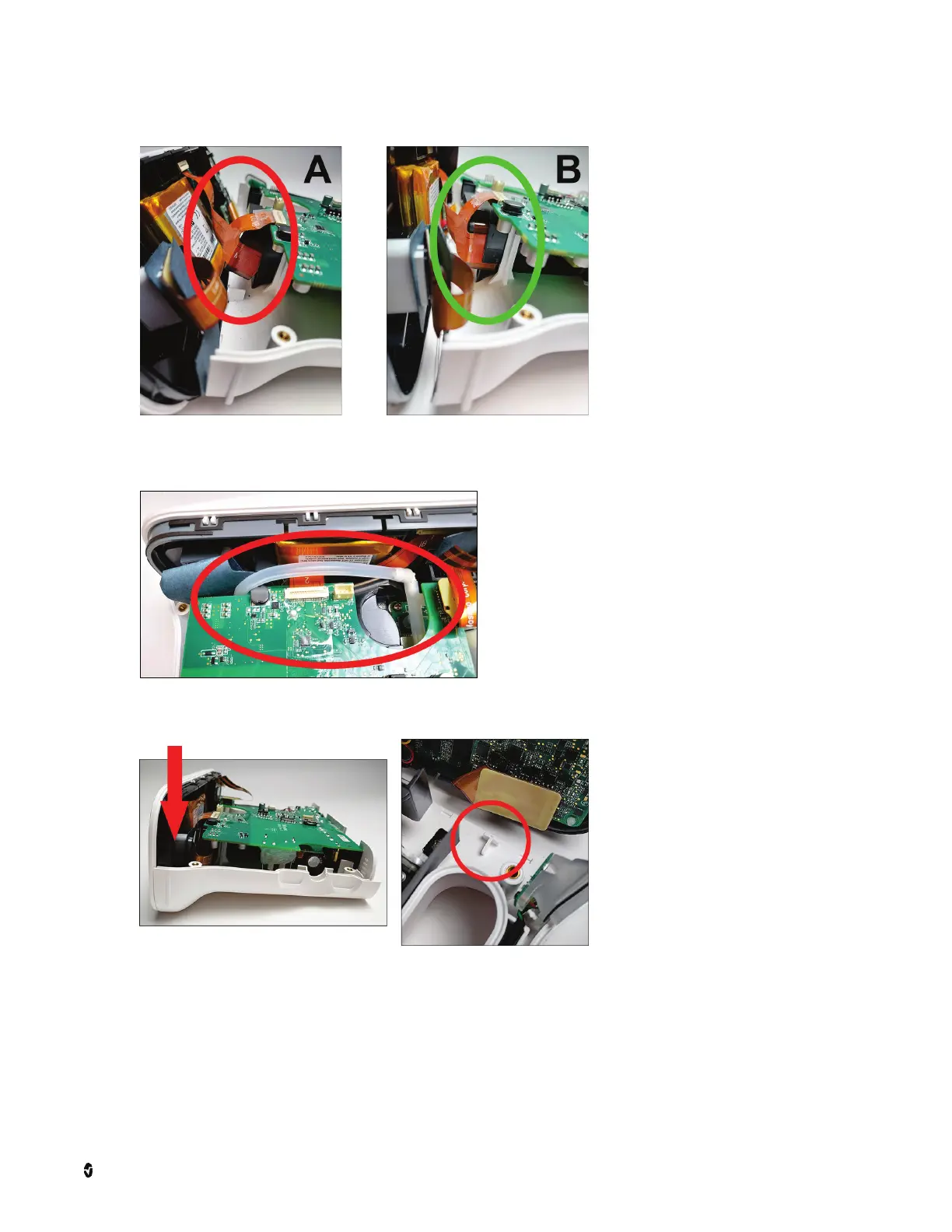

• In image A, the component is improperly aligned and protruding outside of the designated area.
• In image B, the component sits within the slot and is not protruding outside of the designated area.
11. On Rad-97 NIBP models, ensure the hose is not pinched, stretched, or will not become restricted or pinched when the case halves are put back together. The
NIBP tube should remain above the circuit board when reassembling the device as shown.
12. On all models, rotate the faceplate and attach to the case at the T connections as shown. Slide down to fully engage the connections in the case.
13. Reassemble the device, perform the electrical safety testing and confirm proper operation as instructed in the procedure for Reassembly on page 17.
