Masimo Root RDS-7 User Manual

Root Chapter 3: Operation
www.masimo.com 28 Masimo
About the Main Screen

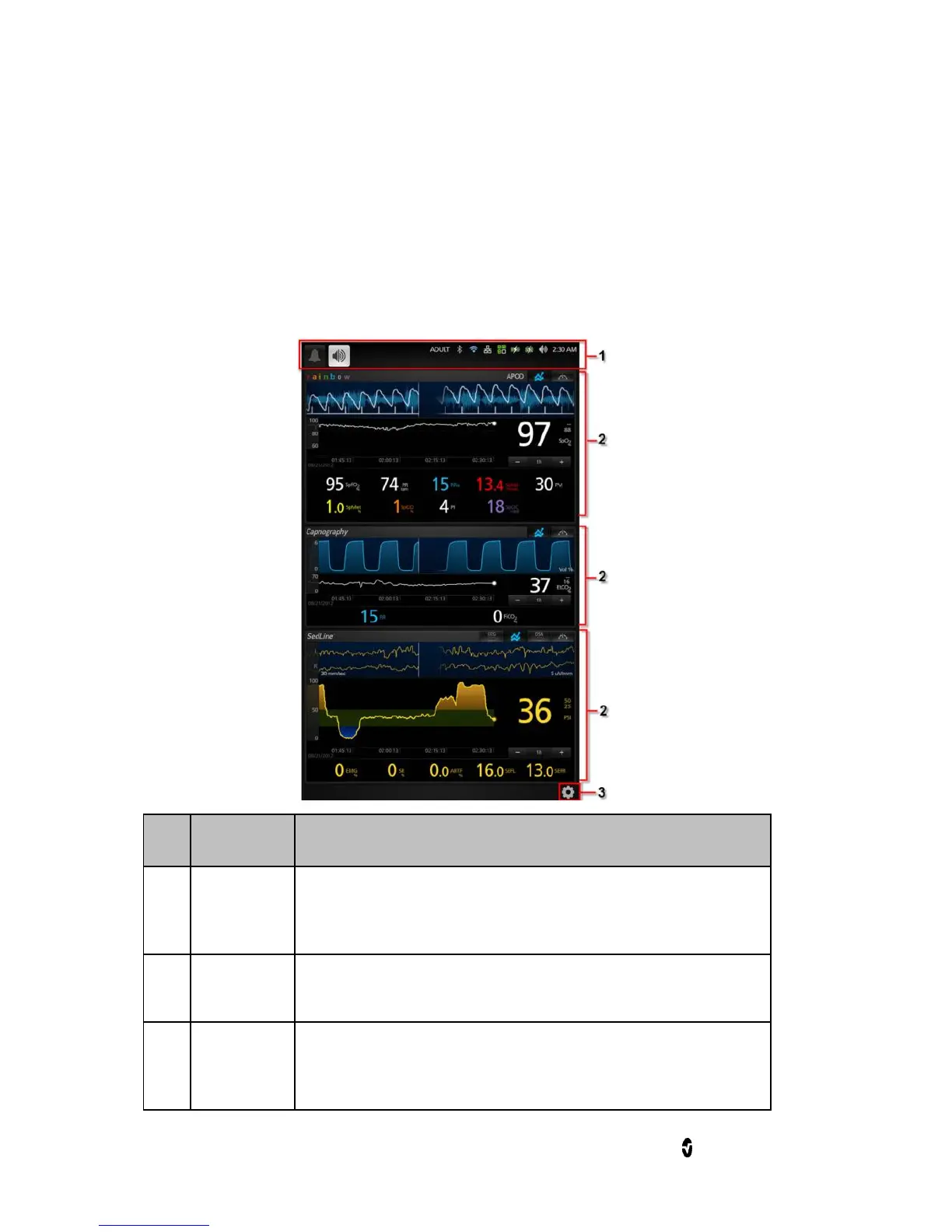

The Main Screen consists of several features. The following shows the Main
Screen when three different technologies are connected, Radical-7 (top)
showing rainbow® parameters and measurements, Phasein module (middle)
showing capnography measurements and SedLine module (bottom) showing
brain function measurements.
Ref.
Feature
Description
1
Status Bar
Displays system status as well as icons that provide
shortcuts to menu items or actions. See About the Status
Bar on page 29.
2
Windows
Provides a dynamic, user-configurable display area for all
the data from Radical-7 or a MOC-9 module.
3
Main Menu
icon
Provides access to the configuration options for Root,
Radical-7 and MOC-9 modules. See Accessing Main
Menu Options on page 43.
