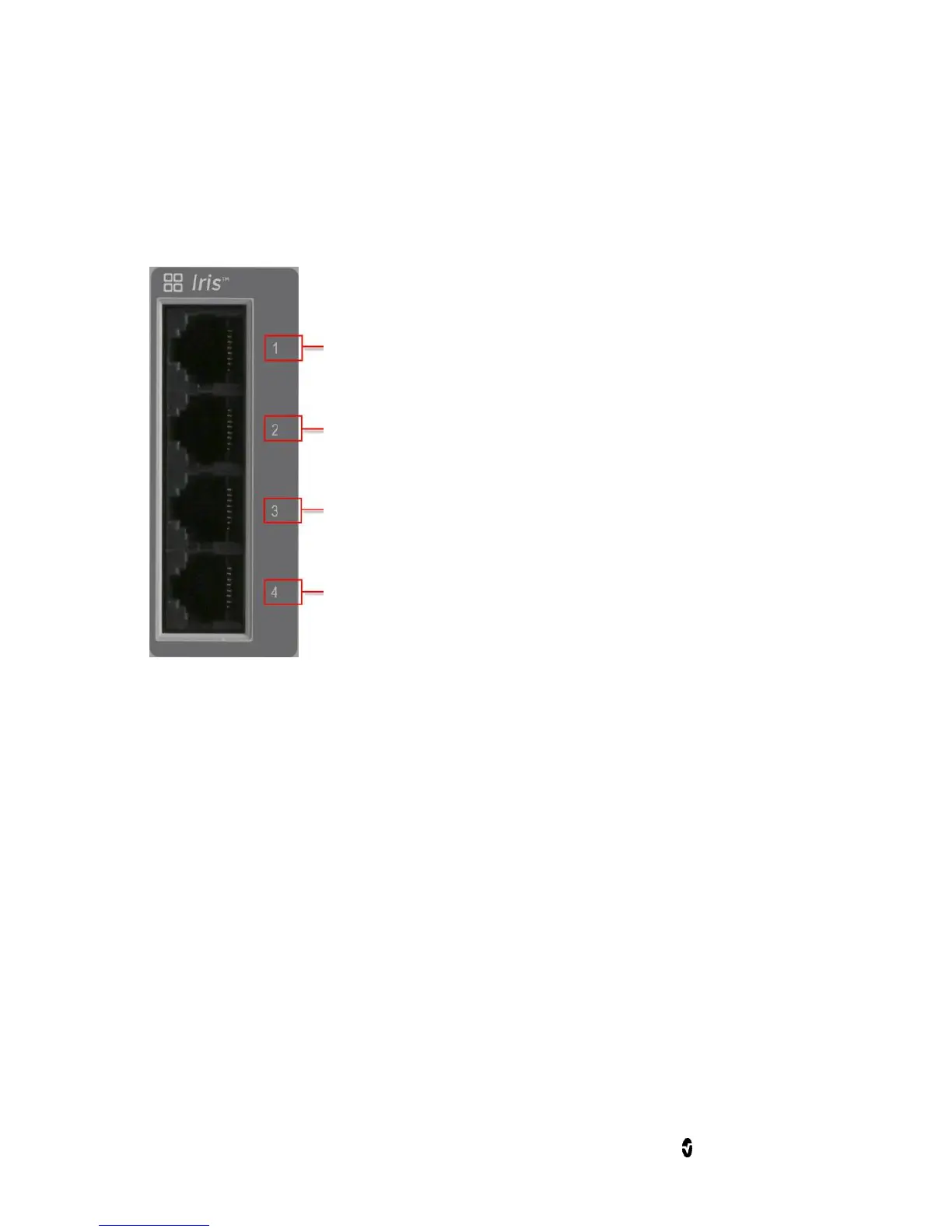

Iris Connection Ports

Use Iris Adapters and RJ-45 cables to connect standalone devices to Root.

Port 1

Port 2

Port 3

Port 4

To connect a standalone device via an Iris Connectivity Port:

1. Connect the RS-232 end of the Iris Adapter to the standalone

device.

2. Connect the RJ-45 end of the Iris Adapter to any of the four (4)

compatible Iris Connectivity Ports on Root using a RJ-45 cable.
