Root Chapter 2: Setting Up
www.masimo.com 24 Masimo

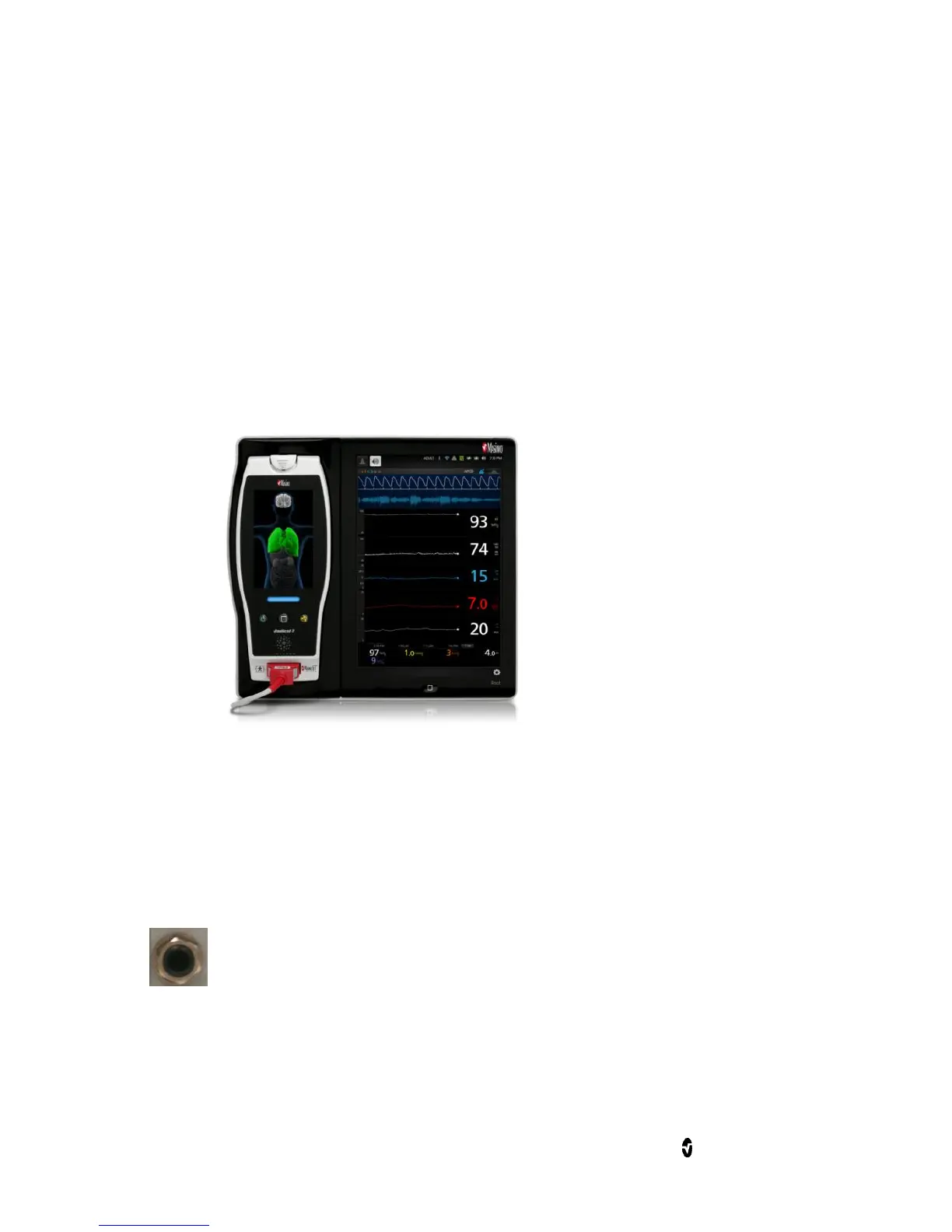

Radical-7 Connection
It is recommended that Root be powered on before performing the steps
below.
 Snap the Radical-7 into the Docking Station.
 If the Radical-7 is not yet turned on, press the power button on the
Radical-7 to power it on.
 When properly connected, the Radical-7 Charging Indicator light will
illuminate. An illuminated Radical-7 Battery icon will also appear in
the Status Bar.
 Root display will show active measurements and parameters.
For Radical-7 charging conditions, see Radical-7 Charging Indicator on
page 64.
Nurse Call Connection Port
Use a Nurse Call connection cable to connect to a Nurse Call System.
