The color of the [RUN] button will change from black to green.
The indication under Status will change from ‘Ready’ to ‘Running’.
Once synchronized the Liquid Crystal Panel operating frequency will be displayed.
8.4. Position Movement via the Monitor Application
8.4.1. 3D Position

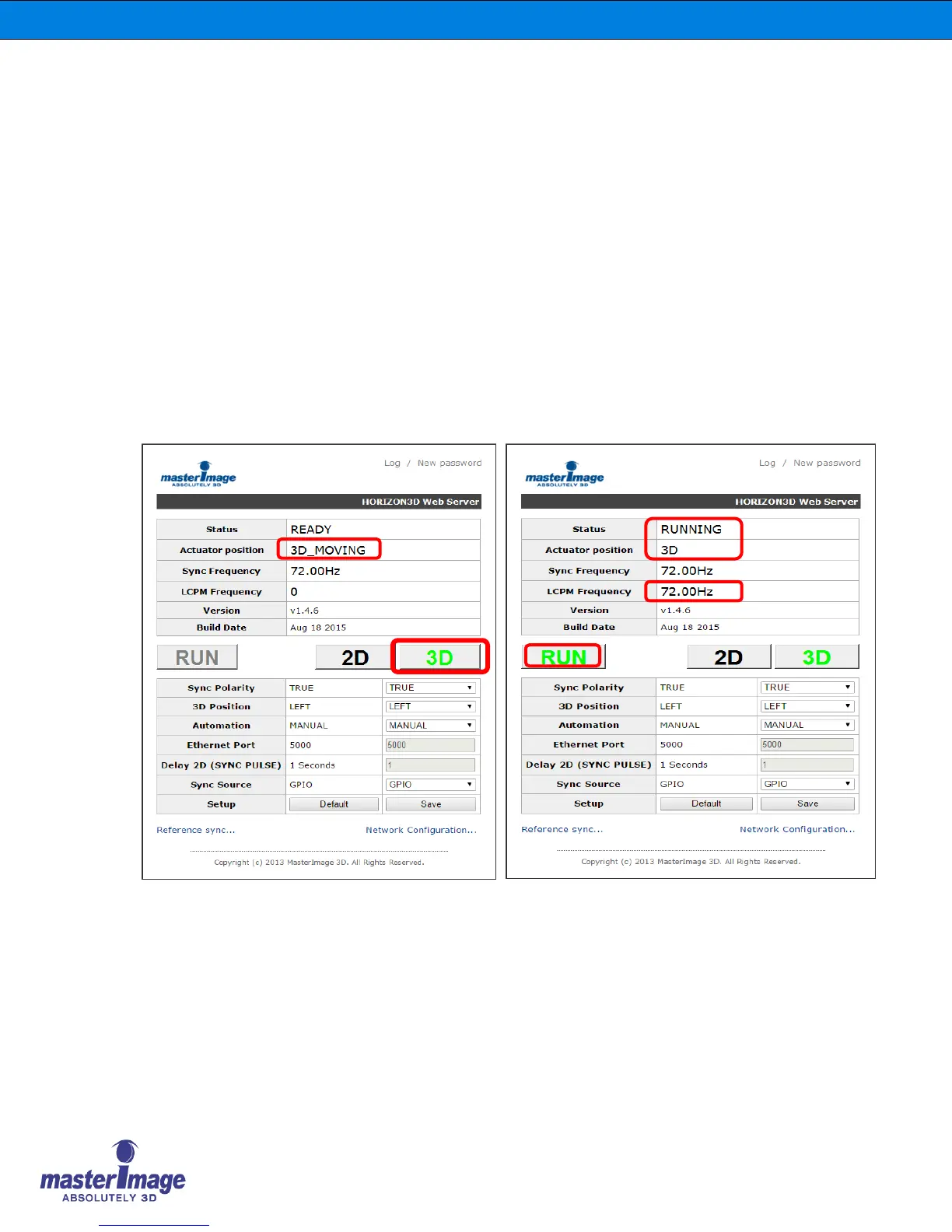

Click the [3D] button to move the actuator to the 3D position.
The color of the [3D] button will change from black to green.
The color of the [RUN] button will change from black to green.
The indication under Status will change from ‘Ready’ to ‘Running’.
Whilst the actuator is transitioning to the 3D position ‘3D_Moving’ will be displayed, when the
3D position is reached this will change to ‘3D’.
Once synchronized the Liquid Crystal Panel operating frequency will be displayed.
