8.8. Sync Pulse Automation Reference Frequency via the
Monitor Application
Set the reference frequencies when the automation source is set to Sync Pulse.

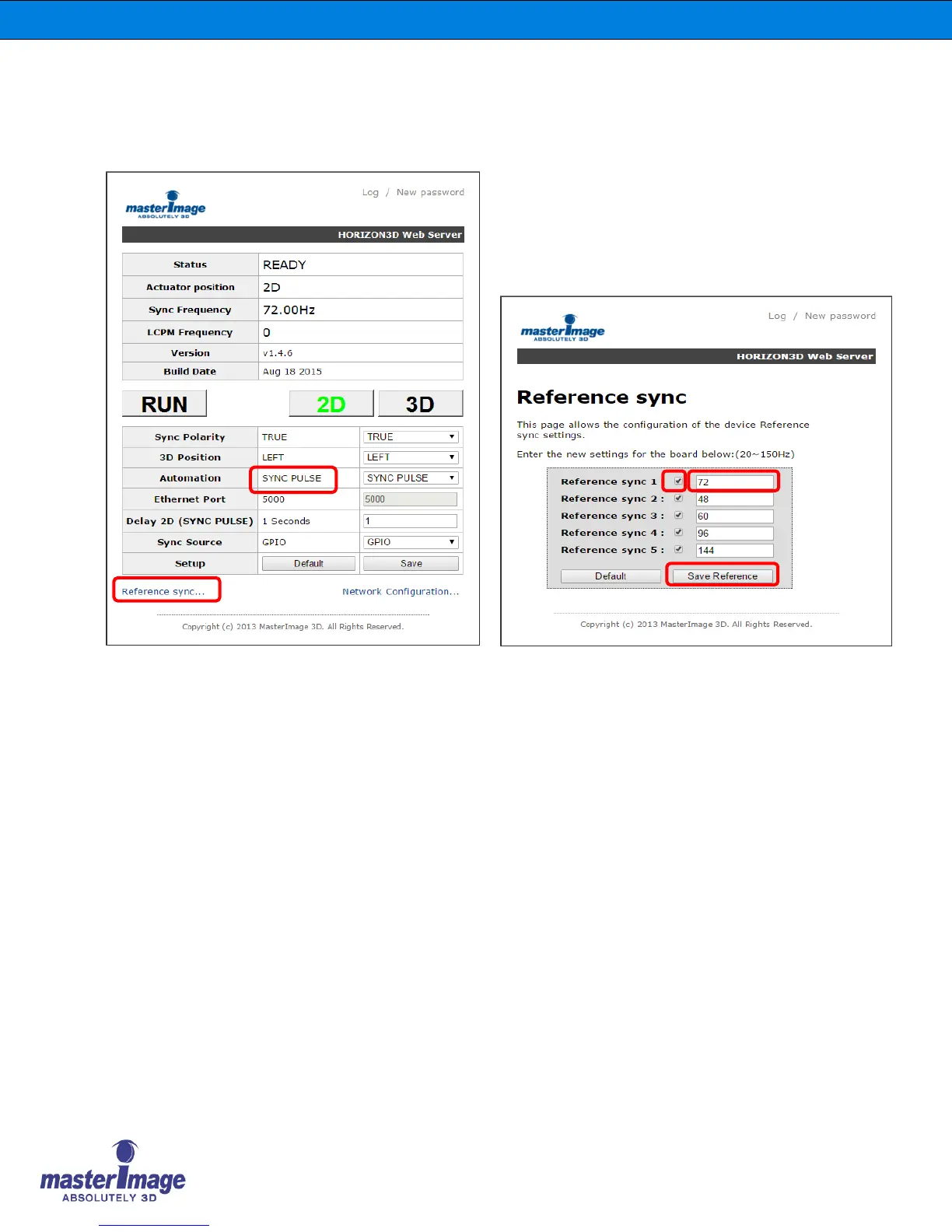

Once the Automation Source has been set to Sync Pulse click [Reference Sync] in the
bottom left of the application.
Up to five reference frequencies can be activated and these can be altered from 45-150Hz as
required. The default settings being 72Hz, 48Hz, 60Hz, 96Hz and 144Hz.
Deselect the check box for any frequency that is not currently being used or required.
Click [Save Reference] to accept any changes.
Click your browser back button to return to the main screen.
