MC320x USER GUIDE I
4-2
4)

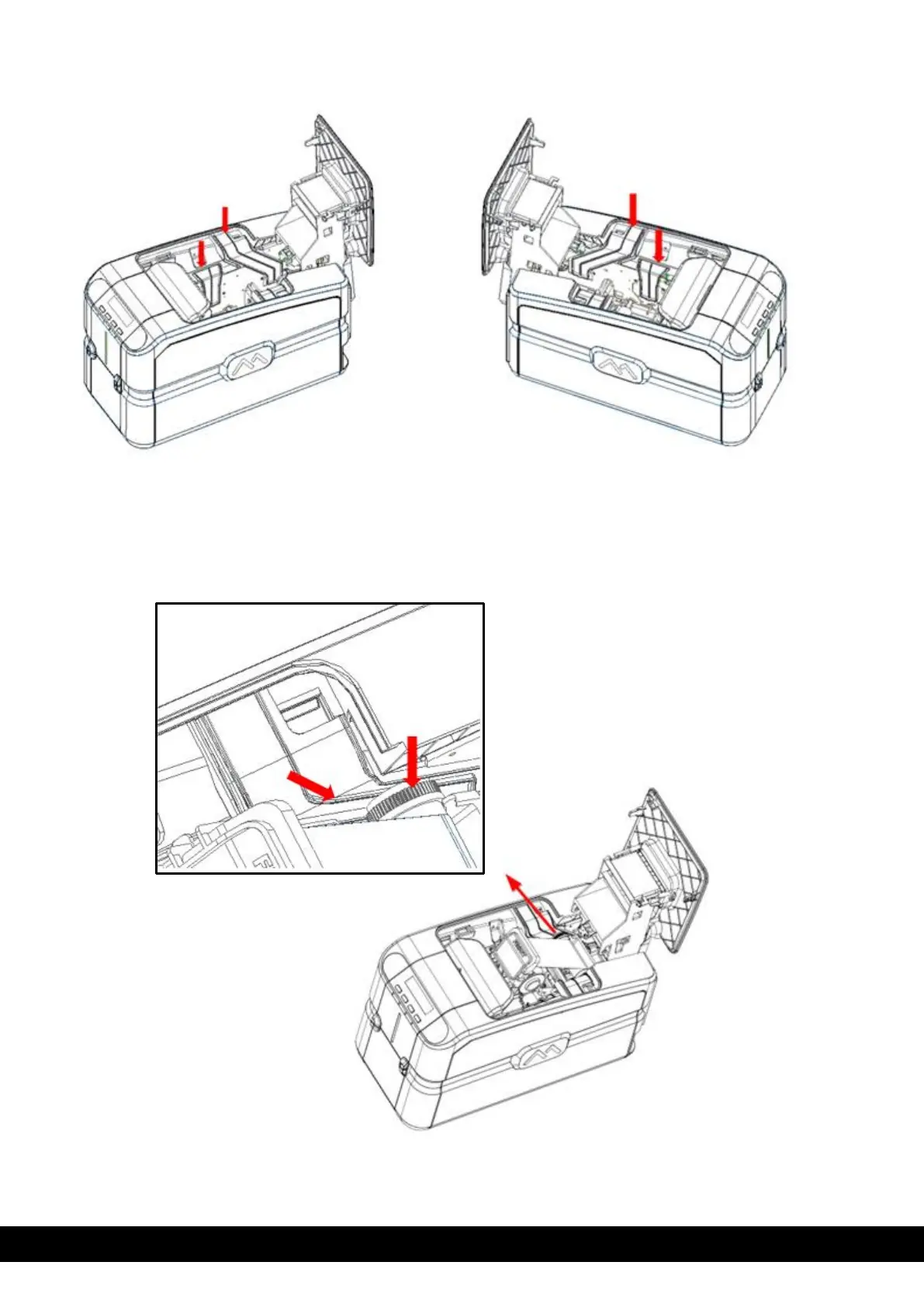

The ribbon carrier should be positioned inside the Right & Left guide cores as illustrated below.
Left guide core for ribbon carrier Right guide core for ribbon carrier
5) Drop the ribbon carrier’s back side (trailer core) into the backend guide cores as per below instructions.
