Matica MC320x - Rear bin Installation

MC320x USER GUIDE I
4-3

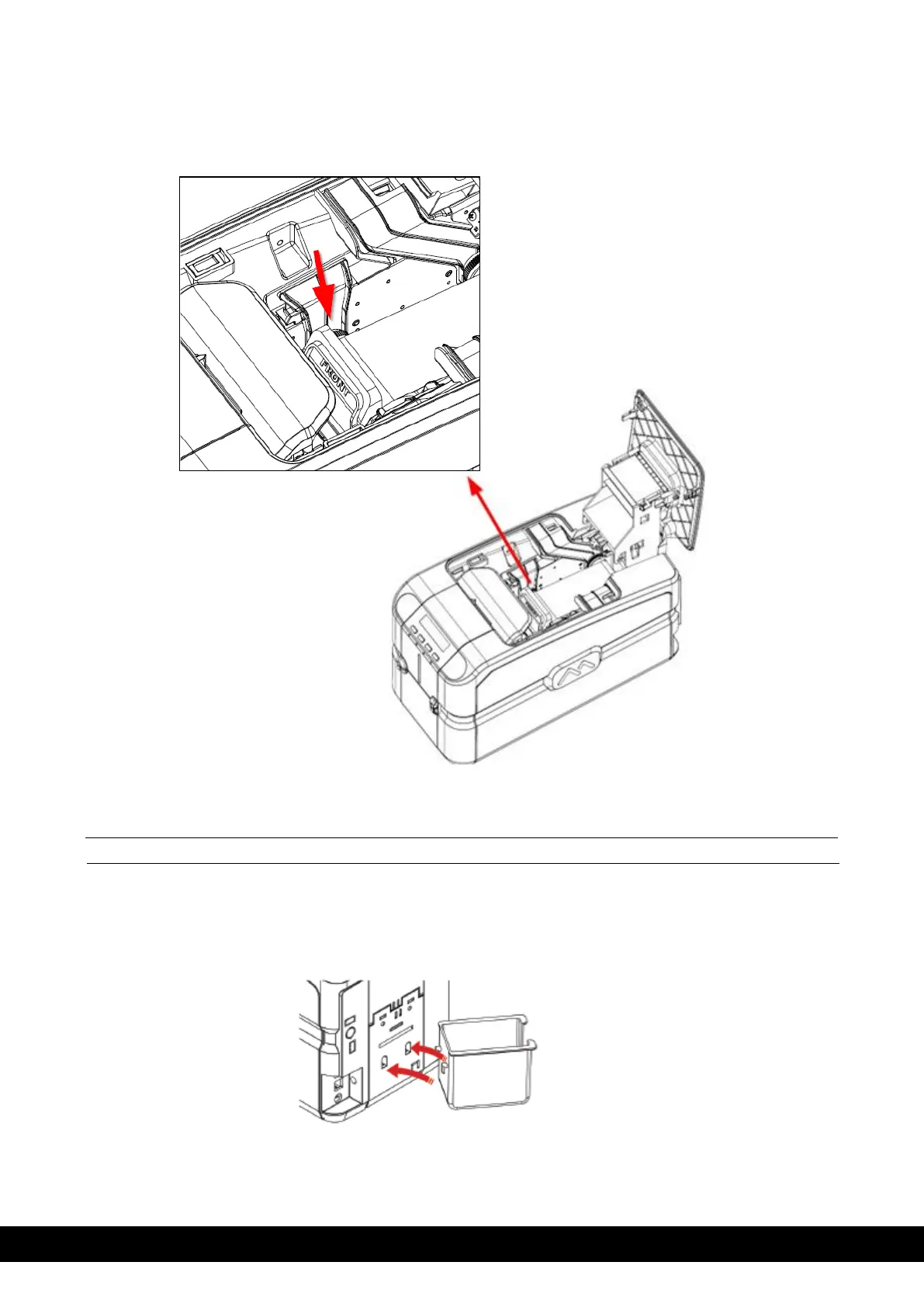

6) Slide the ribbon carrier’s front side (leading core) inside the front guide cores as per illustration.
7) Now close the top cover.
Note: Ribbon carrier should be assembled without touching/damaging the printer head
4.2 Rear bin installation
