Matica MC320x - Printhead Cleaning; Printhead Cleaning Procedure

5-6
User Guide
MC320x USER GUIDE I
7-7

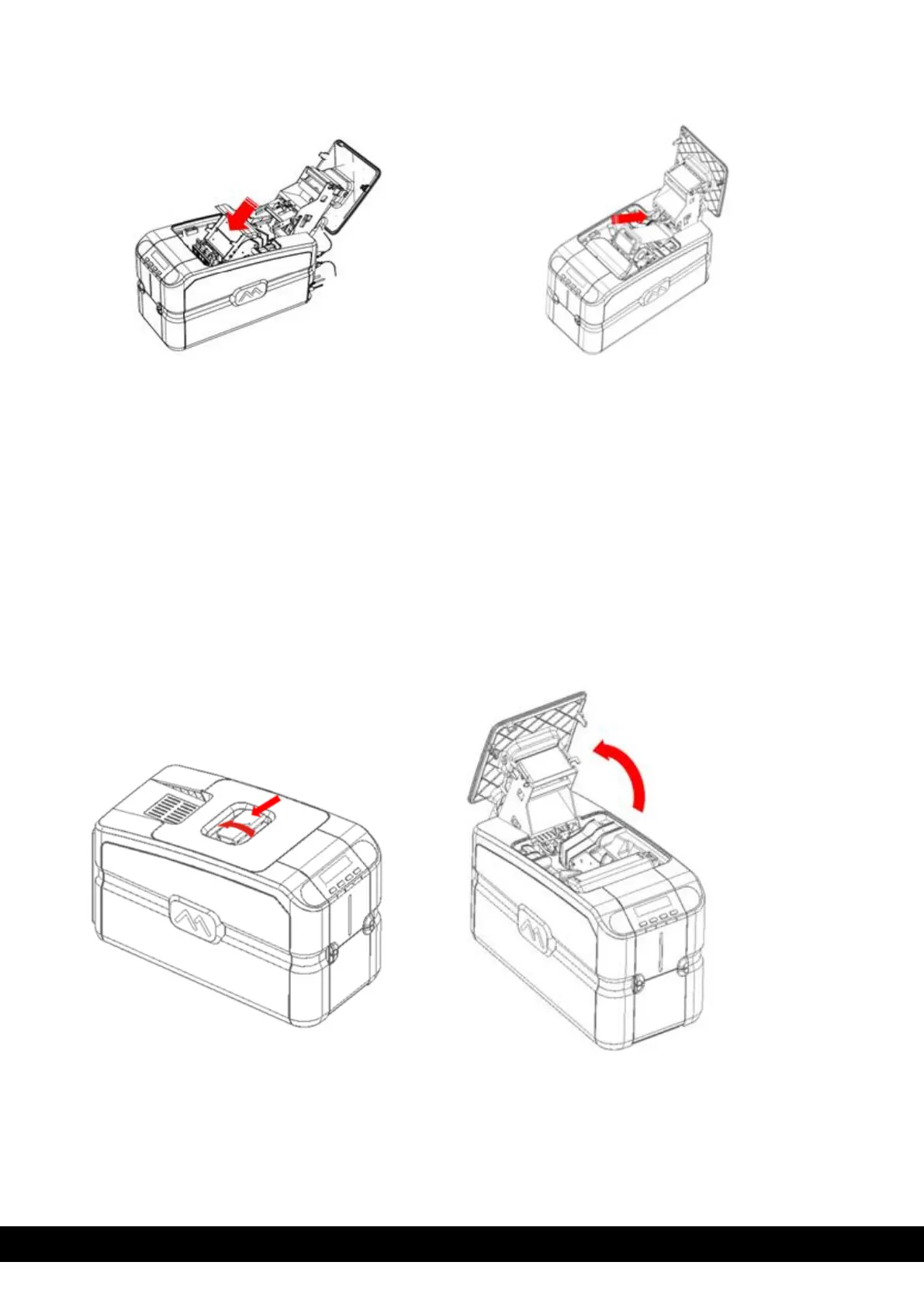

9) Refit the encoder cover and ribbon carrier back into its position
10) Close the top cover.
11) The roller cleaning procedure is now concluded.
7.6 Printhead cleaning
It is suggested to clean the printhead if the print quality starts to deteriorate:
• The edge of the printhead must be cleaned using the cleaning pen.
• The edge of the printhead must be cleaned to remove residual ink ordust.
7.6.1 Printhead cleaning procedure
1) Unplug the printer from the power supply.
2) Open the top cover.
1.Insert the encoder cover
2.Insert the ribbon carrier
