4. REMOTE CONTROLLER INSTRUCTIONS
4.1. Remote controller specifications
Model
R51/E
Rated Voltage
3.0V
Lowest Voltage of CPU Emitting Signal
2.0V
Reaching Distance
8m (when using 3.0 voltage, it gets 11m)
Environment Temperature Range
-5°C ~ + 60°C
4.2. Performace features
1. Operating Mode: COOL, HEAT, DRY, FAN and AUTO.
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range: 17°C ~ 30°C.
4. LCD (Liquid Crystal Display) of all functions.
4.3. Introduction of function buttons on the remote controller
① TEMP Button ▼: Push the TEMP button to decrease the indoor temperature
setting or to adjust the TIMER in a counter-clockwise direction.
② MODE Select Button: Each time you push the button, a mode is selected in a
sequence that goes from AUTO, COO, DRY, HEAT and FAN as the following
figure indicates:
AUTO(COOL)
COOL DRY
HEAT
FAN
NOTE: HEAT only for heating and cooling units.
③ SWING Button: Push this switch button to change the louver angle.
④ RESET Button: When the RESET button is pushed, all of the current settings
are cancelled and the control will return to the initial settings.
⑤ ECONOMIC RUNNING Button: Push this button to go into the Energy-Saving
operation mode.
⑥ LOCK Button: Push this button to lock in all the current settings. To release
settings, push again.
⑦ CANCEL Button: Push this button to cancel the TIMER settings.
CANCE
L
LOCK
1
SET
T
EMPERATURE (°C)
AUTO
COOL
DRY
HEAT
FAN
H
IGH
MED
LOW
TEMP
MODE
S
W
IN
G TIMER
RESET
O
N/
OFF
FAN SPEED
2
3
4
5
6
7
8
9
10
ECON
OMI
C RUNNI
NG
11
VEN
T
12

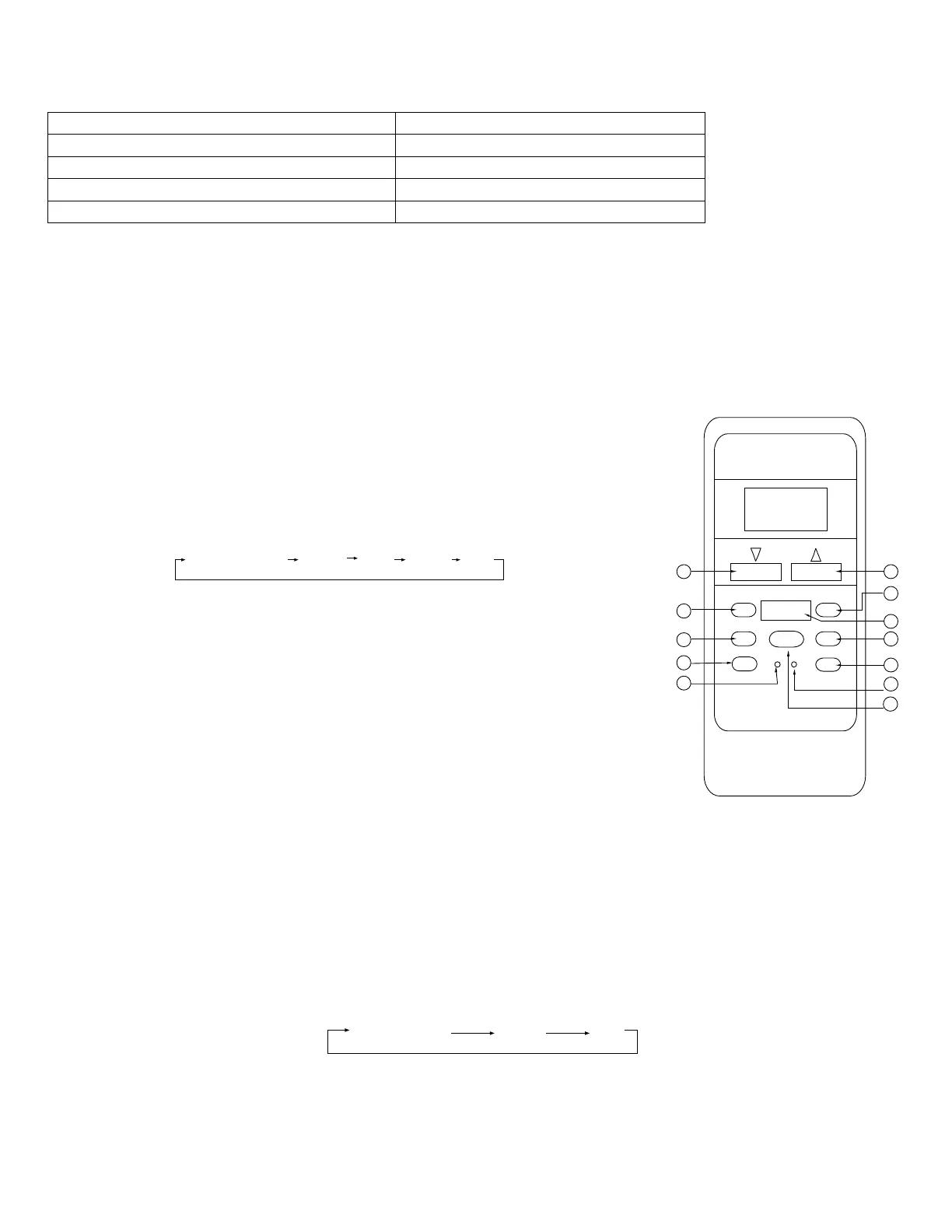

Fig. 1
⑧ TIMER Button: This button is used to preset the time ON (start to operate) and the time OFF (turn off the operation).
⑨ ON/OFF Button: Push this button to start the unit operation. Push the button again to stop the unit operation.
⑩ FAN SPEED Button: This button is used for setting Fan Speed in the sequence that goes from AUTO, LOW, MED to
HIGH, then back to Auto.
⑪ TEMP Button: Push the button to increase the indoor temperature setting or to adjust the TIMER in a clockwise
direction.
⑫ VENT Button: Push this button to set the ventilating mode. The ventilating mode will operate in the following sequence:
Auto Off
Continuous
Ventilation Function is available for the Fresh Star Series.
