8.5. Indoor unit installation
8.5.1 Installation place
Installation in the following places may cause trouble.If it is unavoidable, please consult with the local dealer.
■ A place full of machine oil.
■ A saline place such as coast.
■ A place full of sulfide gas such as hot-spring resort.
■ Places where there are high frequency machines such as wireless equipment, welding
■ Machine, and medical facility.
■ A place there is no combustive gases and volatile matter.
■ A place of special environmental conditions.
Indoor Unit:
■ A place where is no obstacle near the inlet and outlet area.
■ A place which can bearf the indoor unit.
■ A place which is convenient to maintenance.
■ A place which provides the space around the indoor unit as required right in the diagram.
■ There is strong electromagnetic wave exist-ing.
■ A place which is far from heat, steam and inflammable gas.

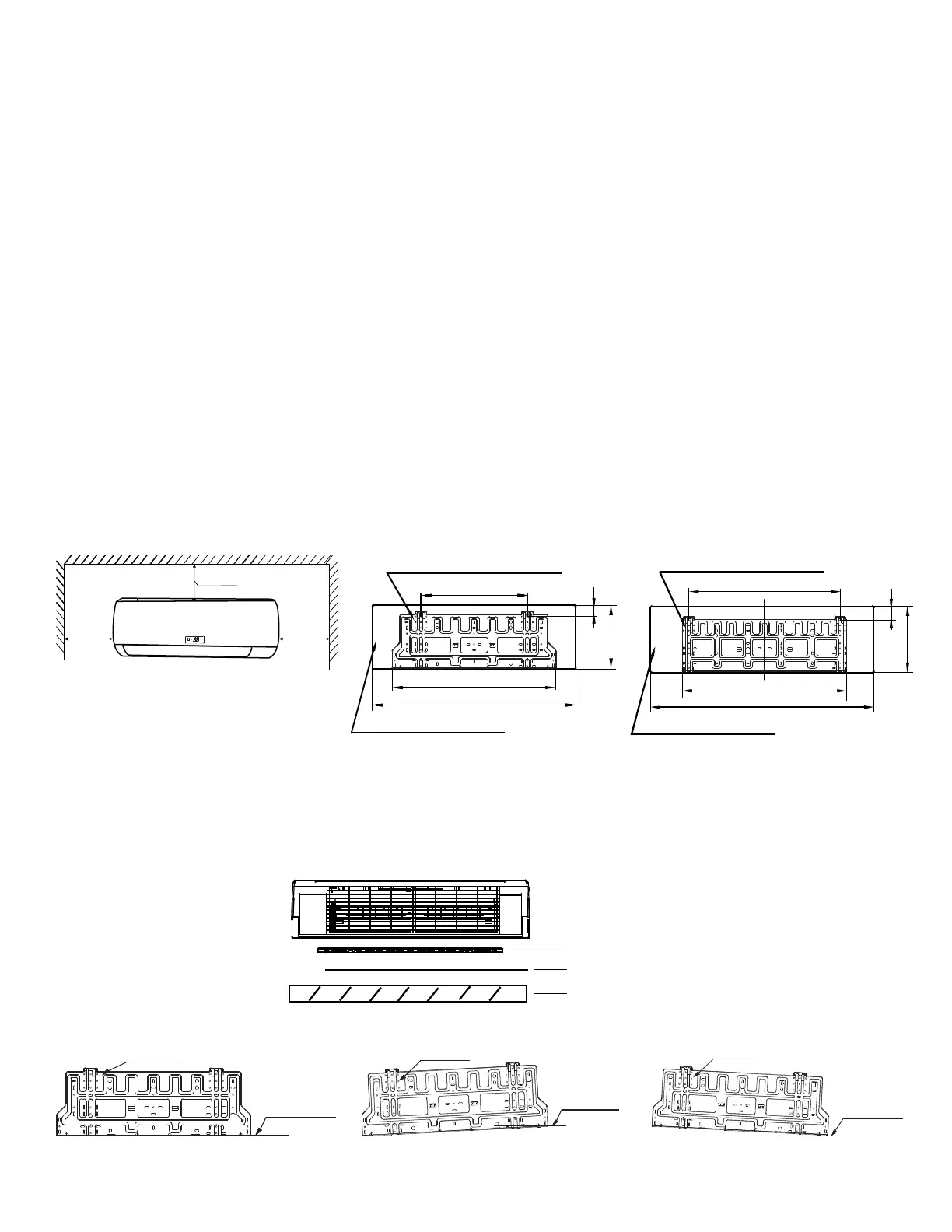

8.5.2 Required space, Mounting installation board and drilling a hole
Mounting board of indoor unit
462
57
290
915
712
The shape of indoor unit
Mounting board of indoor unit
The shape of indoor unit
315
107
0
79
4
730
65
2) Mounting installation board
■ It is recommended to install insulation between mounting board and wall to avoid wall getting damp.
■ Install the installation board horizontally on structural parts in the wall with the spaces provided around the plate.
■ In case of brick, concrete or similar type walls, make 5mm diameter, holes in the wall. Insert clip anchors for appropriate
mounting screws.
unit
mounting board
insulation
wall
■ Fix the installation board on the wall.
Dima installazione
unità interna
Linea orrizontale
Dima installazione
unità interna
Linea orrizontale
Dima installazione
unità interna
Linea orrizontale
