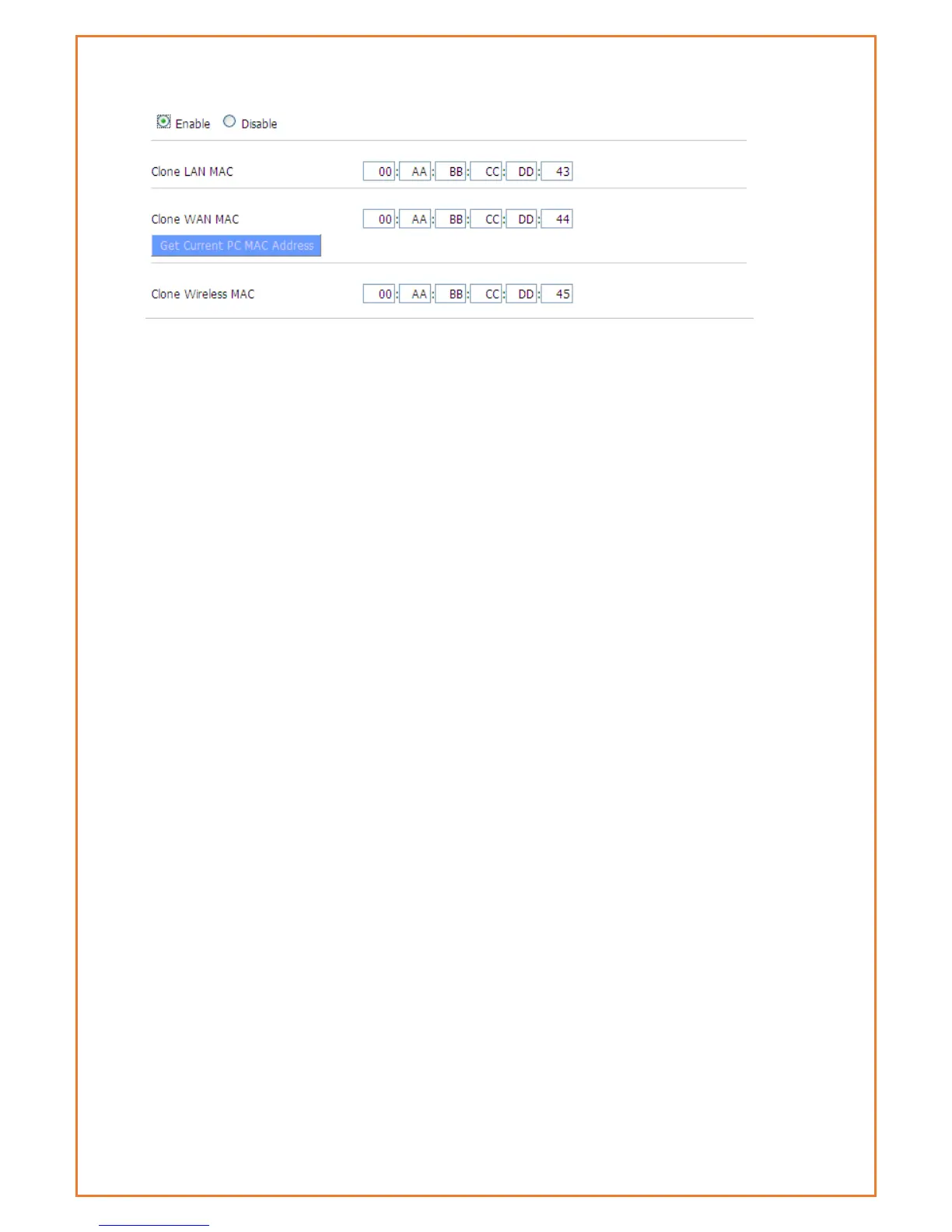

Clone MAC address can clone three parts: Clone LAN MAC, Clone WAN MAC,
Clone Wireless MAC.
Note: MAC addresses are 48 characters, they cannot be set to a multicast
address, and the first byte must be even. The MAC address value of network
bridge br0 is determined by the lower order bits of wireless MAC address and LAN
port MAC address.
Vlan
VLAN’s allow users to specify which ports are “bridged” – that is, where broadcast
traffic will be shared. This allows users to create separate subnets on each LAN
port (or group of LAN ports). Note that although there are 15 VLAN’s available,
there are only 5 ports (4 x LAN, 1 x WAN). Note also that the WAN port should be
on a separate VLAN or routing to the WAN may not work. If the WAN port is
assigned to the same VLAN as the LAN ports, then it becomes an additional LAN
port and cannot be used for a WAN connection.
