39
14. Lower jig and remove from
under Liftgate (FIG. 39-2).
REMOVING JIG
FIG. 39-2
13. Repeat instructions 4 through
12 for RH installation plate.
CHASSIS SUPPORT
BRACKETS
12. For gussets welded below the
long sill, weld chassis support
brackets to installation plate
and truck chassis as shown
in FIG. 39-1.

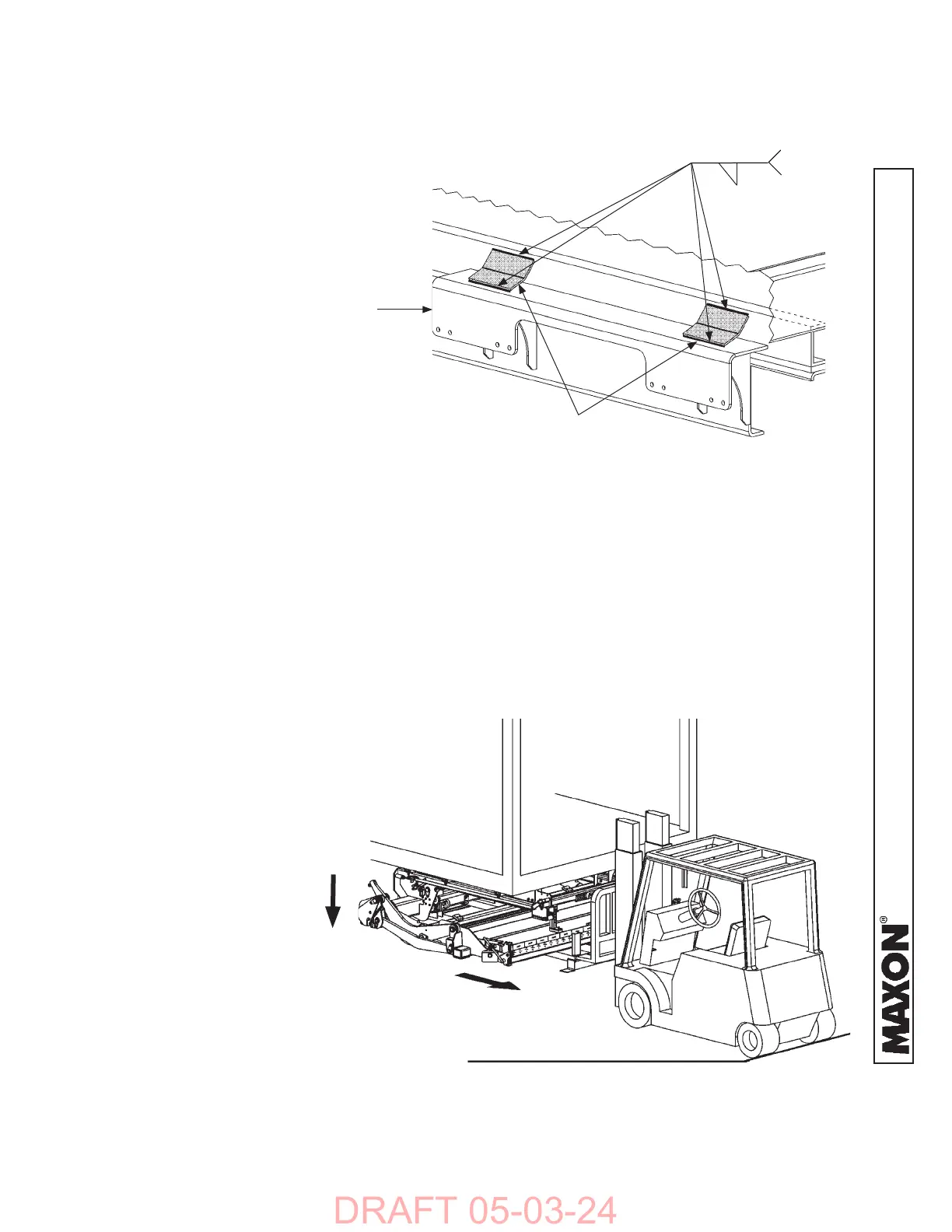

WELDING CHASSIS SUPPORT BRACKETS TO
FIG. 39-1
1/4”
4 PLACES
INSTALLATION
PLATE
STEP 1 - INSTALLING LIFTGATE ON TRUCKS - Cont’d
To Next Page
