STANDARD LIFTGATE COMPONENTS
CAUTION
!
NOTE: Make sure you have all components and parts before you start installing Liftgate.
Compare parts in the part box and each kit box with packing list enclosed in each
box. If parts and components are missing or incorrect, call:
Maxon Customer Service
Call (800) 227-4116 or
Send e-mail to cservice@maxonlift.com
MAIN
ASSEMBLY
Unpacking the Liftgate on unlevel surface may allow heavy components to slide off
when shipping bands are cut. Injury and equipment damage could result. Before
the shipping bands are cut, put Liftgate on level surface that will support 1750 lbs.
When unpacking the Liftgate, remove heavy components carefully to avoid injury
and damage.
PARTS BOXES

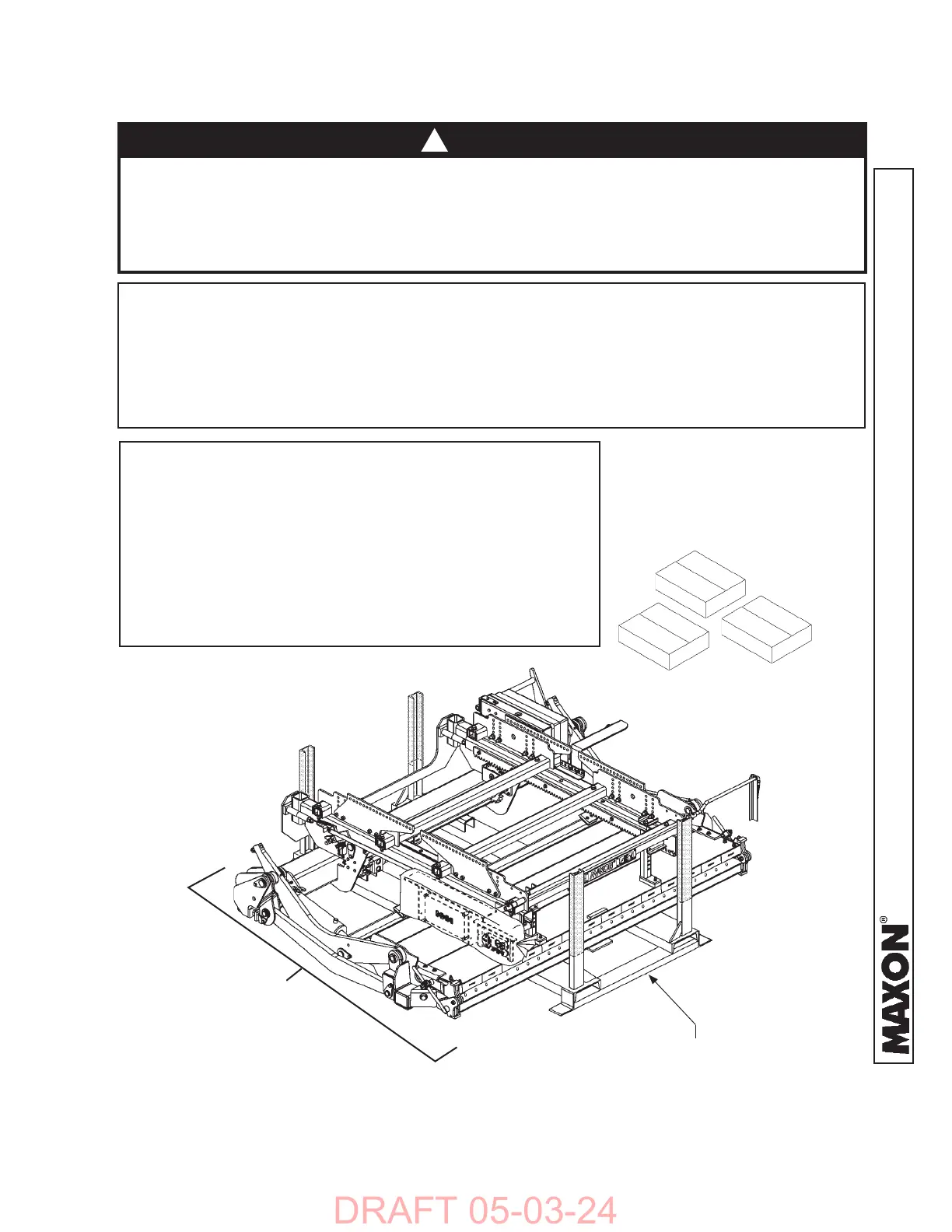

GPSLR LIFTGATE COMPONENTS FOR SHIPMENT
FIG. 7-1
INSTALLATION JIG
NOTE: Vertical channels on Liftgate installation jig may
need to be cut shorter to prevent interference with
underbody of vehicle. See FIG. 7-1. The shaded
portion of each channel shows how much of
the channel that may need to be cut to prevent
interference. Before installation, keep Liftgate with
the installation jig on the ground and covered with
a welding blanket. Cut the channels only when
Liftgate is protected from debris.
