71

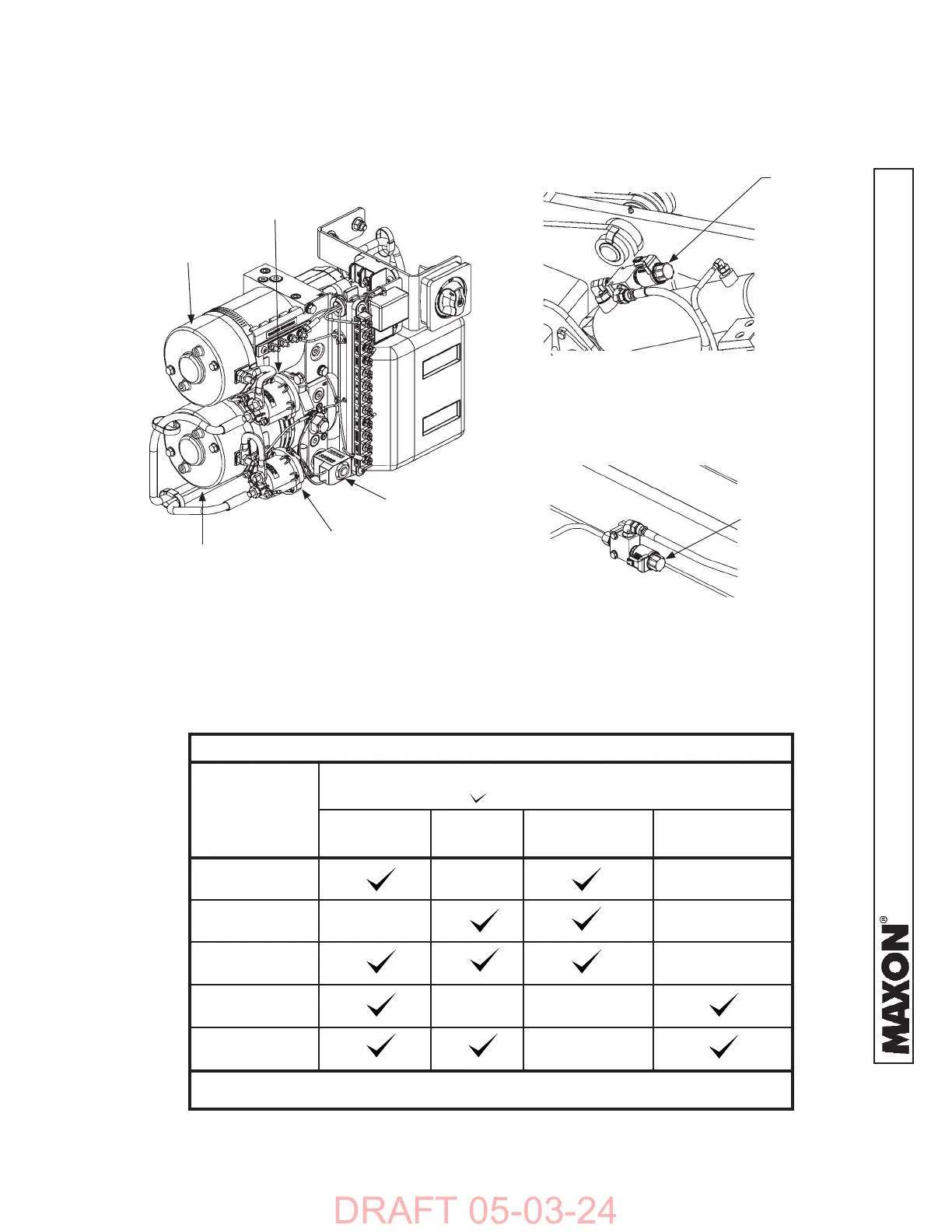

PUMP & MOTOR SOLENOID OPERATION - DUAL PUMPS
MOTOR #1
STARTER
SOLENOID #1
TABLE 71-1
POWER UNIT MOTOR & SOLENOID OPERATION
LIFTGATE
FUNCTION
SOLENOID OPERATION
( MEANS ENERGIZED)
MOTOR
(#1 OR #2)
VALVE
(S1)
LOCK VALVES
(S2)
LOCK VALVE
(S3)
RAISE - -
LOWER (GD) - -
LOWER (PD) -
SLIDE OUT - -
SLIDE IN -
REFER TO VALVES SHOWN ON HYDRAULIC SCHEMATIC
MOTOR 2
STARTER
SOLENOID 2
S1 VALVE
POWER UNIT
FIG. 71-1
LOCK VALVE (S3)
(BI-DIRECTIONAL)
FIG. 71-3
LOCK VALVE
(S3)
LOCK VALVE (S2)
(RH CYLINDER SHOWN)
FIG. 71-2
LOCK
VALVE (S2)
(2 PLACES)
SYSTEM DIAGRAMS - Continued
