Maxon GPSLR Series - Step 6 - Attach Stow Light to Trailer

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
54
STEP 6 - ATTACH STOW LIGHT TO TRAILER
1. Position stow light on trailer as shown in FIGS. 54-1
and 54-1A. Rivet (Kit items) the stow light to LH
front corner of trailer (FIG. 54-1A).
NOTE: Stow light will warn vehicle driver if the Liftgate is not stowed. Light must be
positioned so the driver can see the light from the driver’s side view mirror.

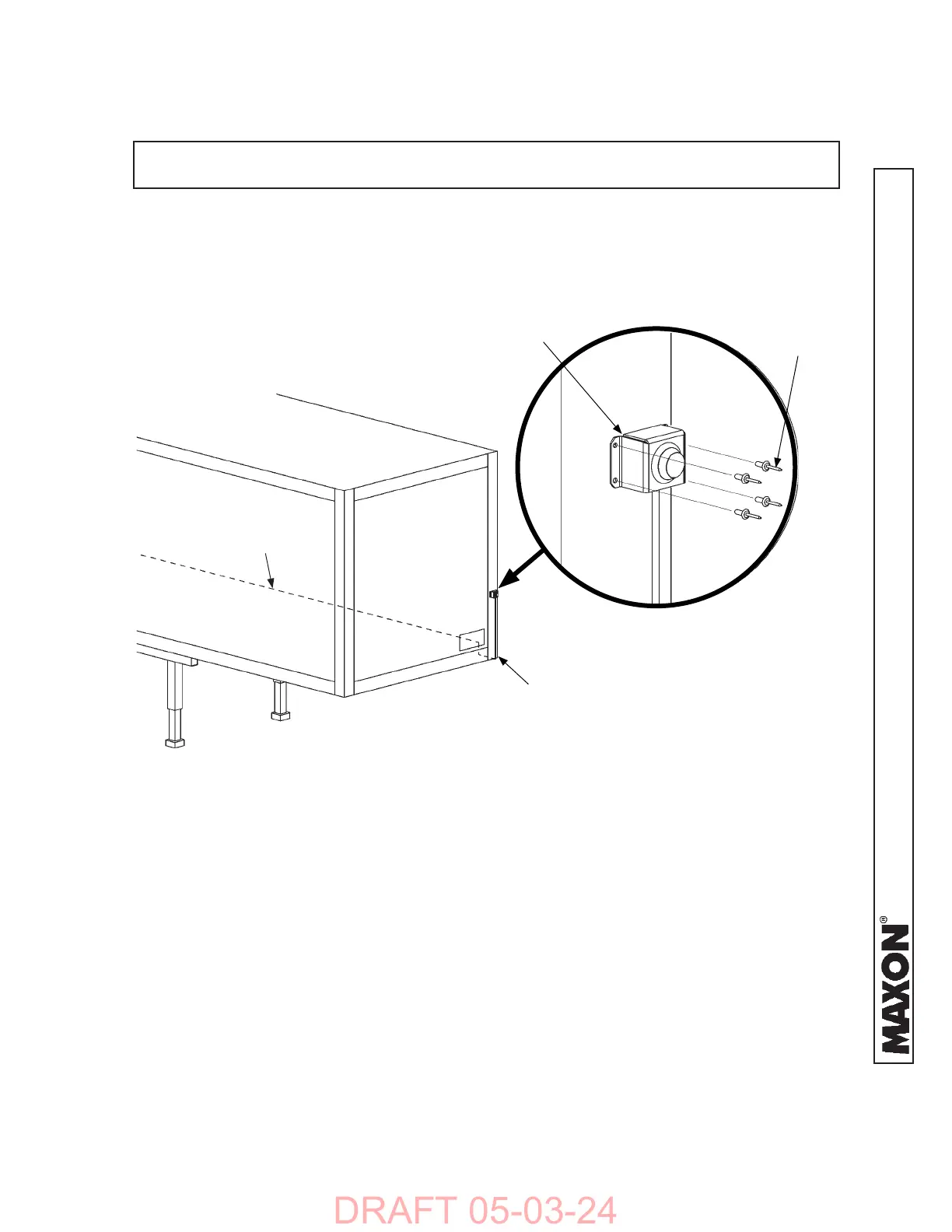

FRONT OF TRAILER
FIG. 54-1
FIG. 54-1A
FRONT LH
CORNER
STOW LIGHT
RIVET,
3/16” X 9/16”
(4 PLACES)
CABLE TO
J-BOX
DRAFT 05-03-24
