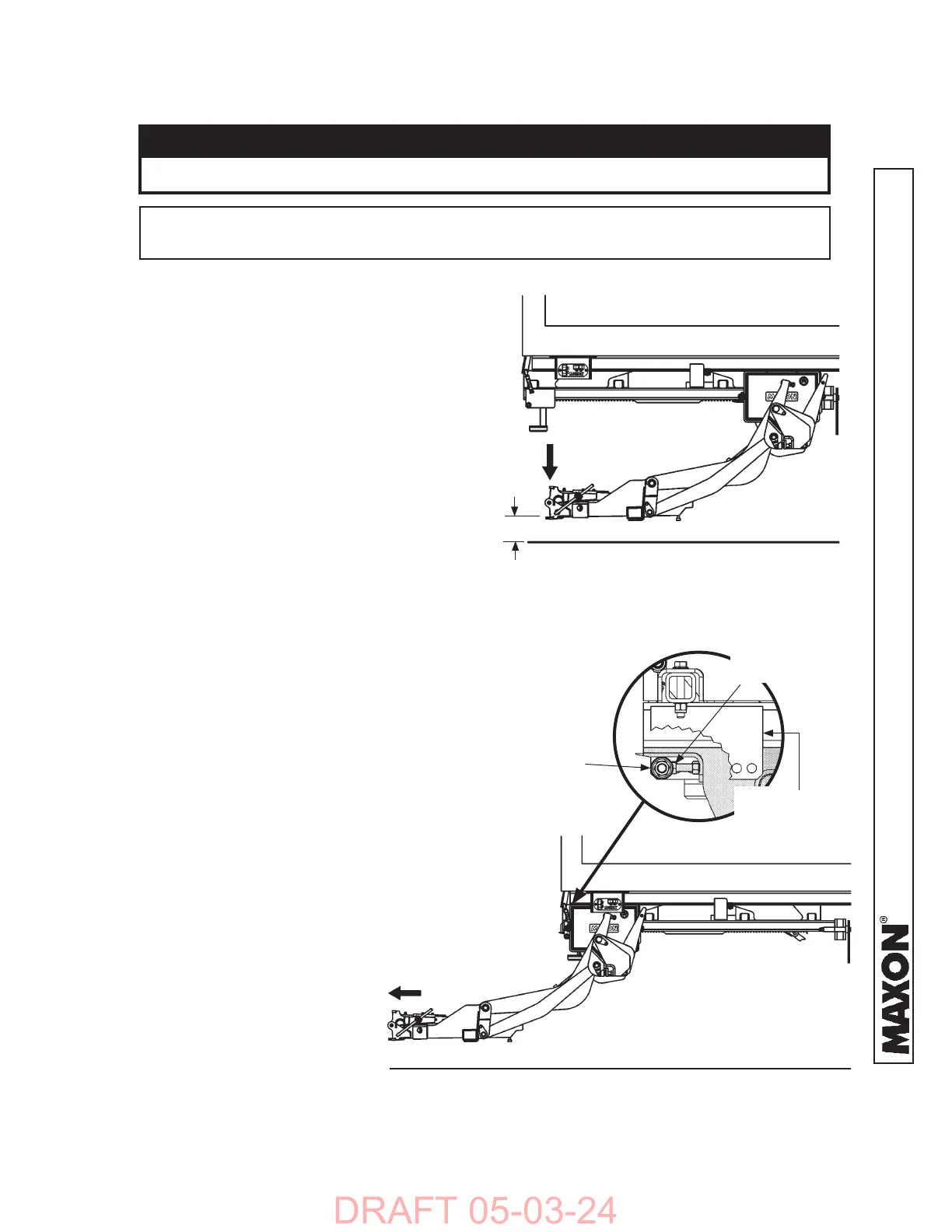

STEP 7 - PLATFORM ADJUSTMENT
NOTE: Refer to Operating Instructions decal and applicable WARNING &
CAUTION decals.
CAUTION
Operate Liftgate with caution and no load until installation is complete.
1. Lower platform to 6” above ground level
(FIG. 57-1).
LOWER PLATFORM
FIG. 57-1
LIFTGATE TRAVELS TO OUTBOARD STOPS
FIG. 57-2
2. Move the platform out (FIG. 57-2) until
slider installation plate bolts hit the stop roll-
ers (FIG. 57-2A).
STOP
ROLLER
SLIDER
BOLT
SLIDER STOP
BRACKET
FIG. 57-2A
6”
