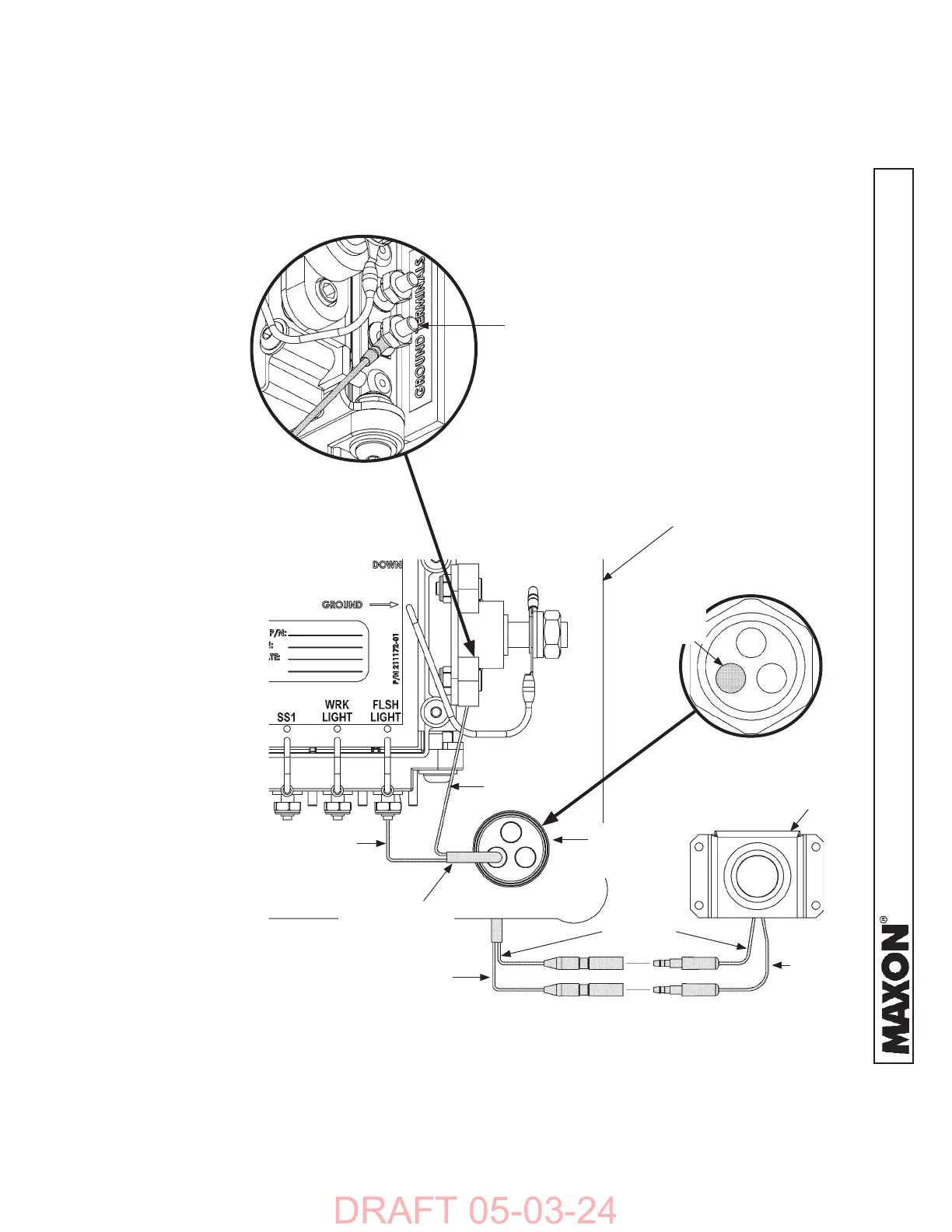

STOW WARNING LIGHT CONNECTIONS AT J-BOX
FIG. 55-1
2. Knock out plastic plug from the cable gland as
shown in FIG. 55-1A. Connect stow light to stow light har-
ness at J-box (FIGS. 55-1 and 55-1B).
WHITE
FIG. 55-1A
FIG. 55-1B
J-BOX
CABLE
GLAND
STOW LIGHT
HARNESS
GROUND (-)
STUD
BLACK
STOW LIGHT
BLACK
WHITE
BLACK
PLASTIC
PLUG
STEP 6 - ATTACH STOW LIGHT TO TRAILER - Continued
