4. Bolt the support (Kit item) to
mounting channel (Kit item)
(FIG. 56-1).
BOLTING SUPPORT TO MOUNTING CHANNEL &
STEP (LH STEP & SUPPORT SHOWN)

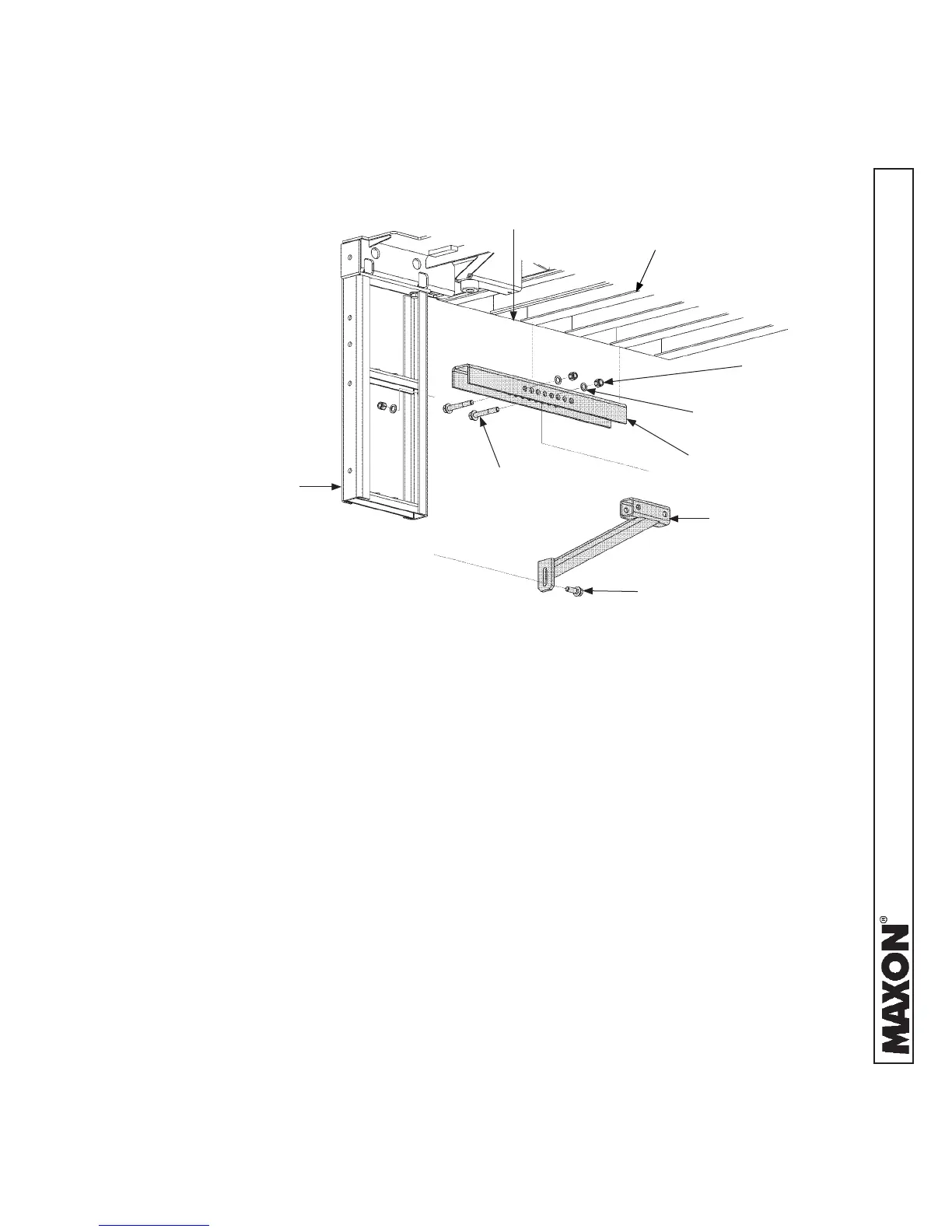

FIG. 56-1
5. Butt the fl at part of the mounting
channel against bottom of vehicle
rear sill and I-beams. Then, butt the
support against back of the step
(FIG. 56-1).
STEP 14 - BOLT STEPS TO EXTENSION PLATE
- Continued
I-BEAM
(VEHICLE BODY)
LH STEP
STEP SUPPORT
MOUNTING
CHANNEL
LOCK NUT
(3 PLACES)
FLAT WASHER
(3 PLACES)
REAR SILL
1/2” X 3-1/2” LG.
FRAME BOLT
(2 PLACES)
1/2” X 1-1/2” LG
FRAME BOLT
6. Ensure slotted hole in the step sup-
port is lined up with the hole on
the step (FIG. 56-1). Then, bolt the
support to step (FIG. 56-1). Torque
the lock nuts (FIG. 56-1) to 105 lb-ft
force.
