Note: If you’re replacing the drive identified by the square, note that the right bracket is longer
than the other three brackets. You’ll have to be careful to attach that bracket to the
corresponding side of the replacement drive.

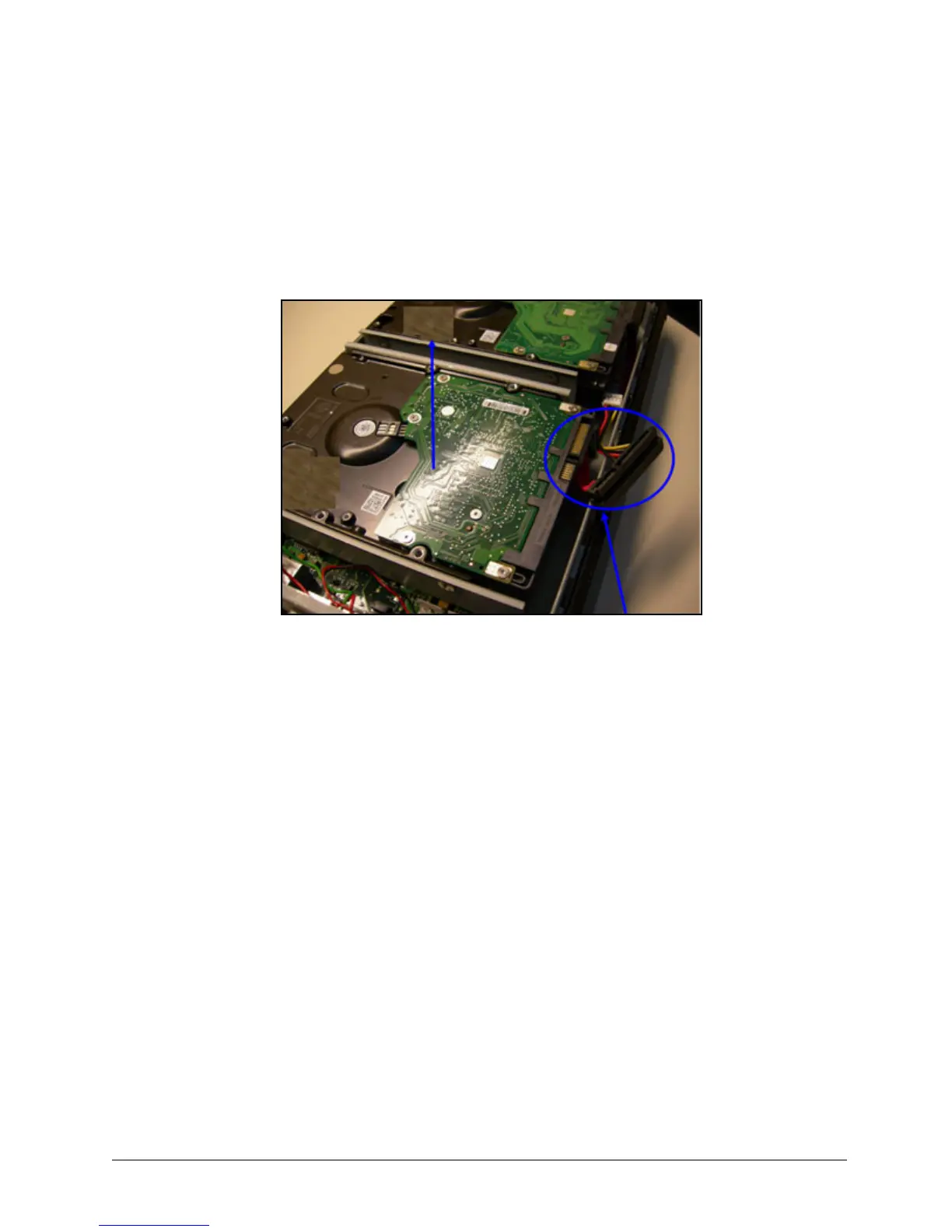

Step 6: Disconnect the cable from the disk drive and carefully lift the disk drive from the
chassis:
Step 7: Set the disk drive on the work surface and remove the four fasteners holding the
mounting brackets to the disk drive:
Figure 128: Disk Drive Removal
