Step 11: Tighten the mounting fasteners in four places:
Step 12: Attach the cover to the bottom of the disk drive by aligning the row of tabs on the
cover with the row of slots on the bottom:

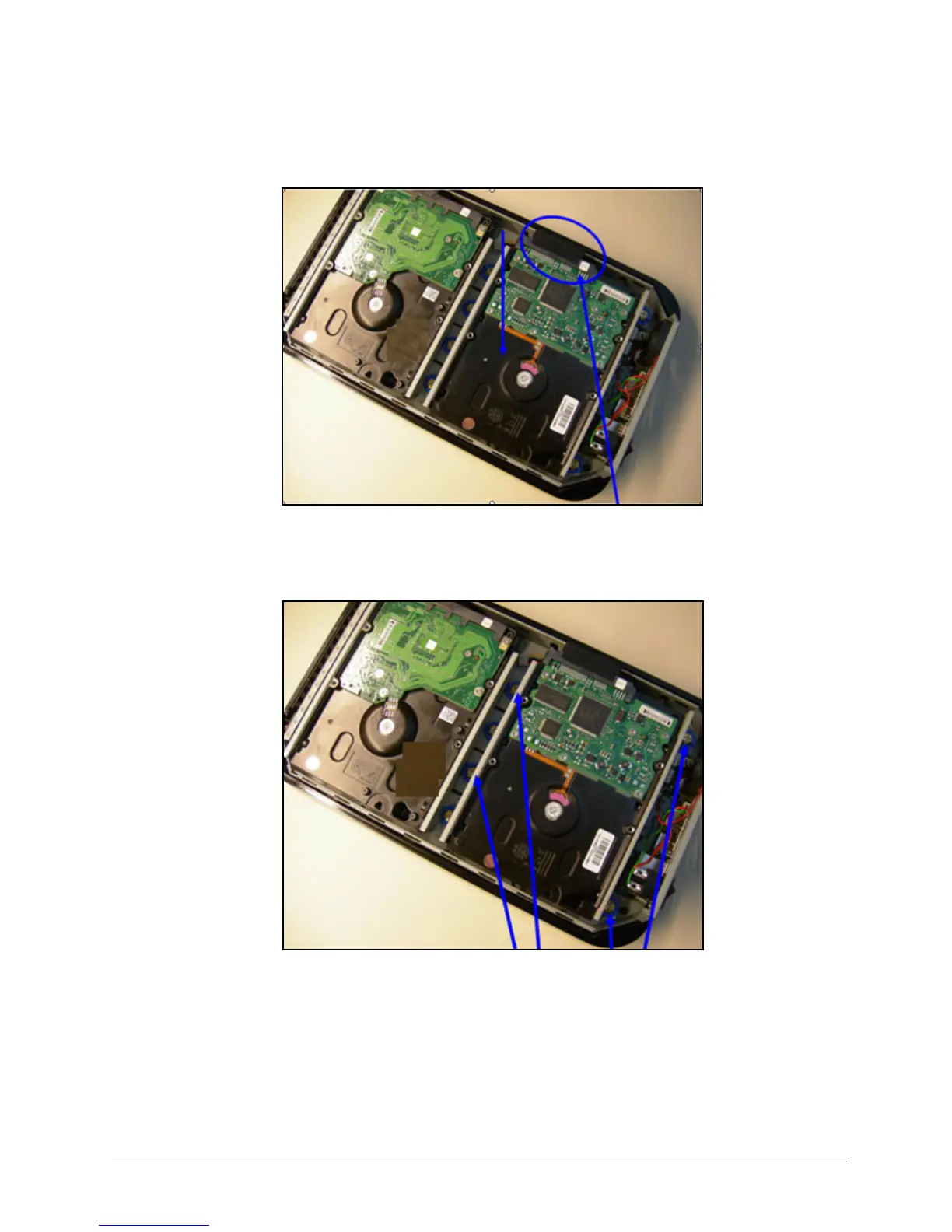

Figure 133: Replacement Drive Positioned in Chassis
Figure 134: Mounting Fasteners
