L3 Turbo Engine
Timing Chain
• A roller chain and respective sprockets have been adopted in order to improve durability
against high output and heavy loads.

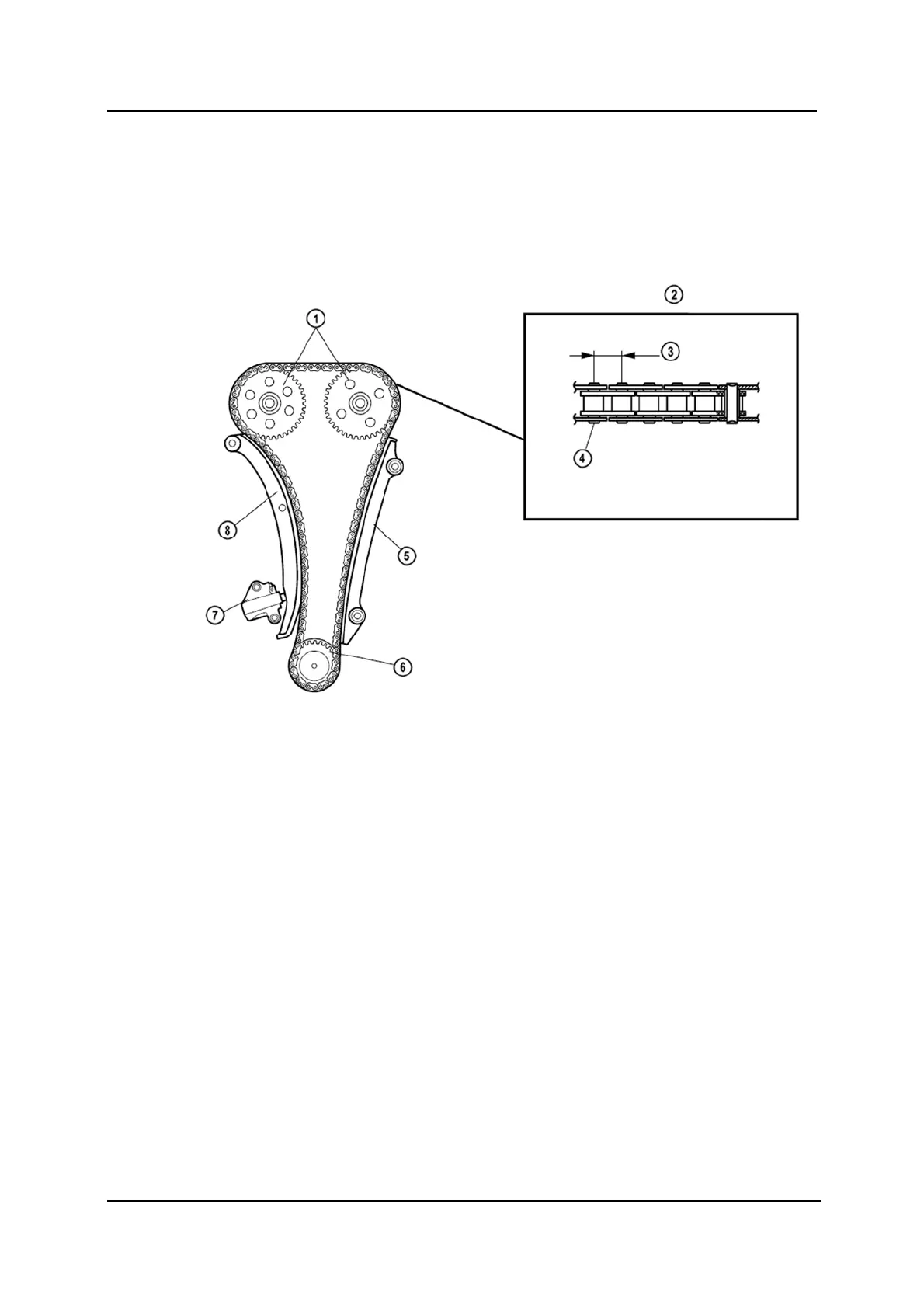

M6-MPS_01011
1 Camshaft sprockets 5 Chain guide
2 Timing chain 6 Crankshaft sprocket
3 Pitch size 7 Chain tensioner
4 Pin 8 Tensioner arm
01-10 Service Training Mazda6 MPS Supplement
