Mazda 6 MPS 2005 - Drive Shafts and Rear Axle

Driveline/Axle
Drive Shafts
• Double offset joint type front and rear drive shafts have been used for the Mazda6 MPS.
• The drive shafts are equipped with bell joints on the wheel side and double offset joints
with low slide resistance on the differential side of the constant velocity joints.

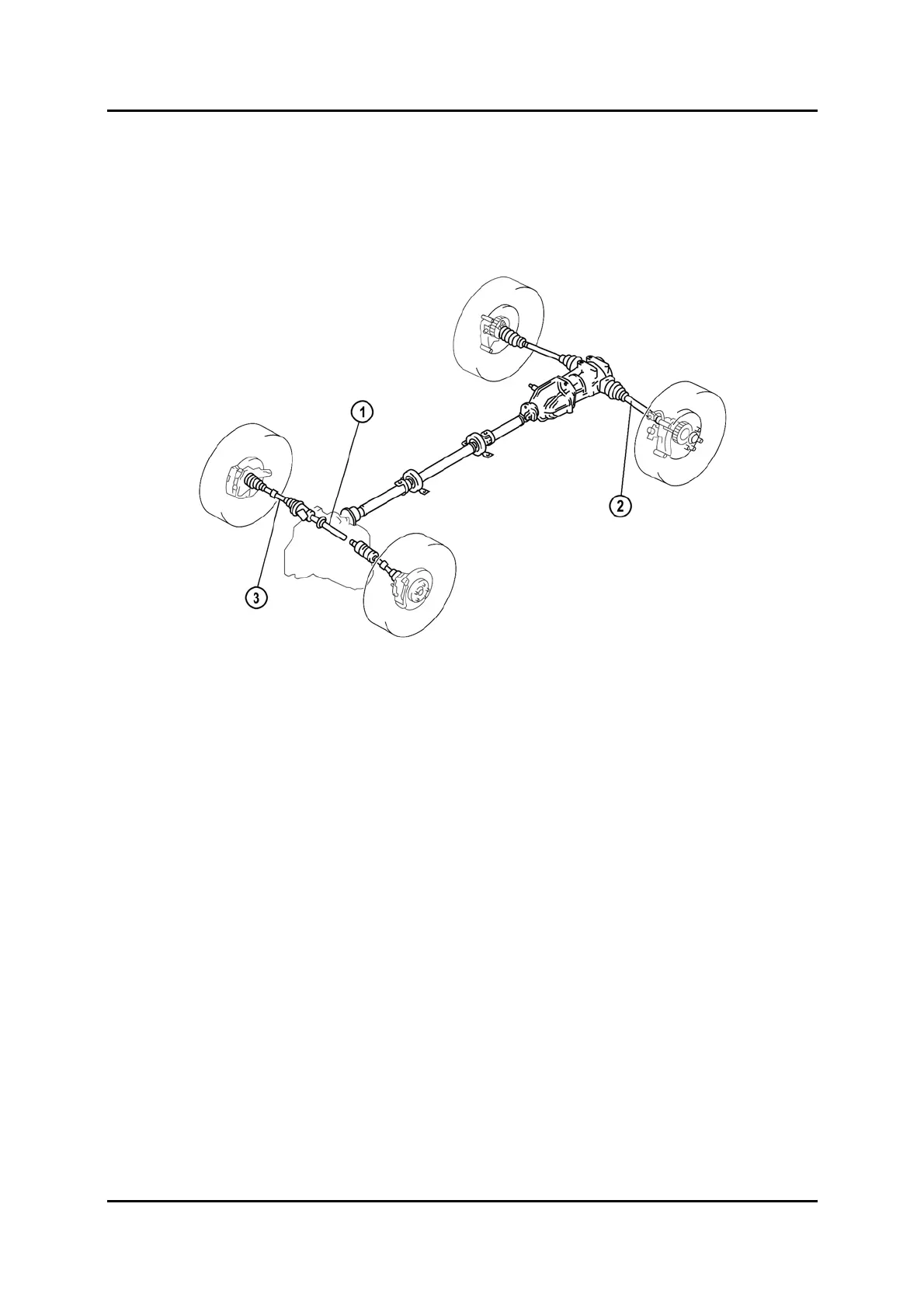

M6-MPS_03003
1 Joint shaft 3 Front drive shaft
2 Rear drive shaft
Service Training Mazda6 MPS Supplement 03-9
