Driveline/Axle

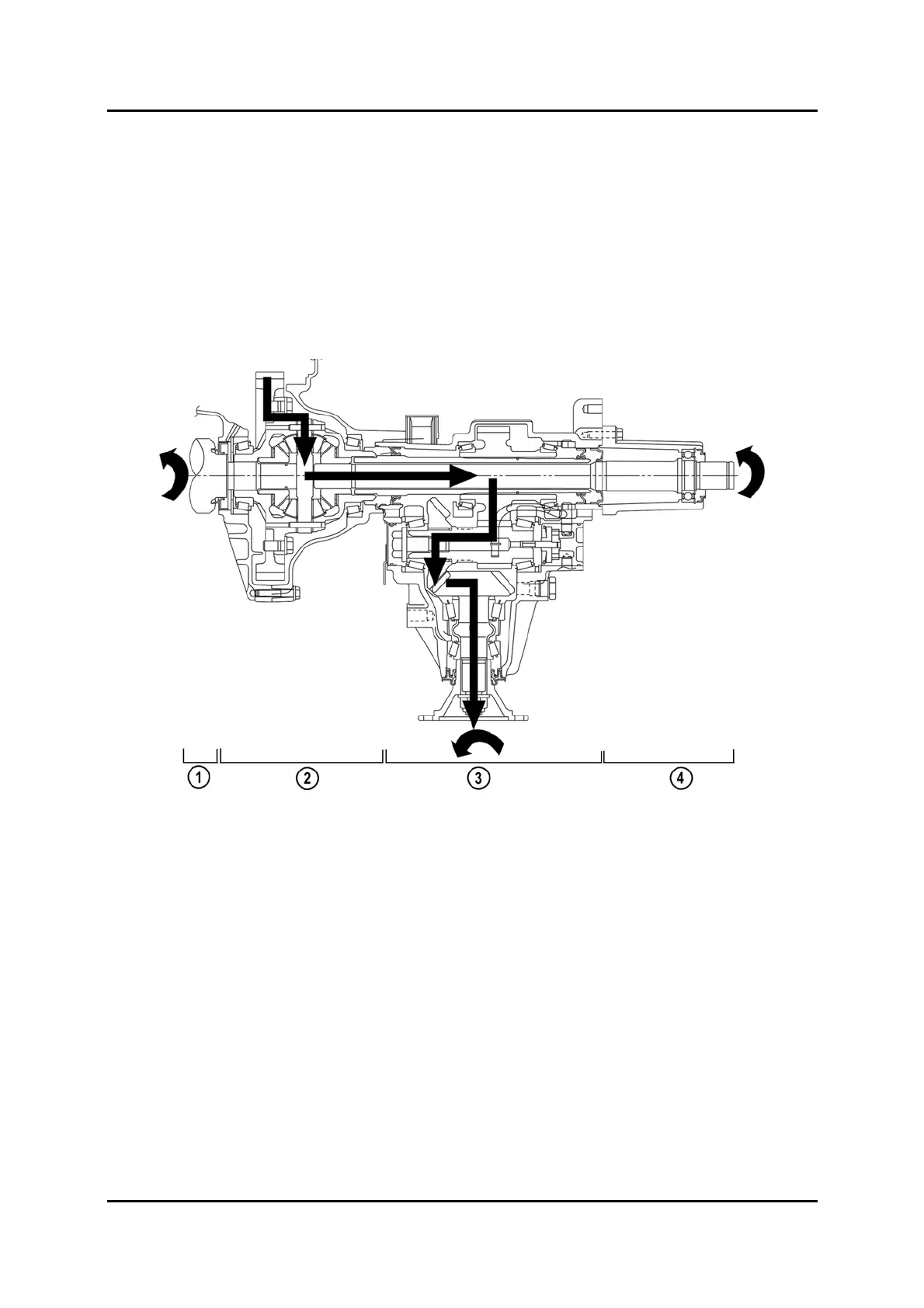

Transfer Case Power Flow
• The transfer case is driven by the hollow drive gear shaft, which is connected to the
differential cage.
• The joint shaft, which drives the front right driveshaft, independently rotates inside the
drive gear shaft and is driven by the right differential bevel gear.
• The drive gear is fixed to the drive gear shaft and drives the ring gear shaft. The ring
gear drives the drive pinion gear which rotates the flange that is attached to the propeller
shaft.
M6-MPS_03009
1 Front left drive shaft 3 Transfer case
2 Front differential 4 Joint shaft
Service Training Mazda6 MPS Supplement 03-5
