Mazda 6 MPS 2005 - Fuel Pump Resistor

Engine L3 Turbo
Fuel Pump Resistor
• On L3 Turbo the fuel pump relay supplies voltage to the fuel pump via the fuel pump
resistor to protect the fuel pump when the injection amount is low (when engine speed is
low).
• The fuel pump resistor has a resistance of 0.304...0.336 ohms (20° C).
• The resistor is located below the air cleaner housing.
M6-MPS_01035

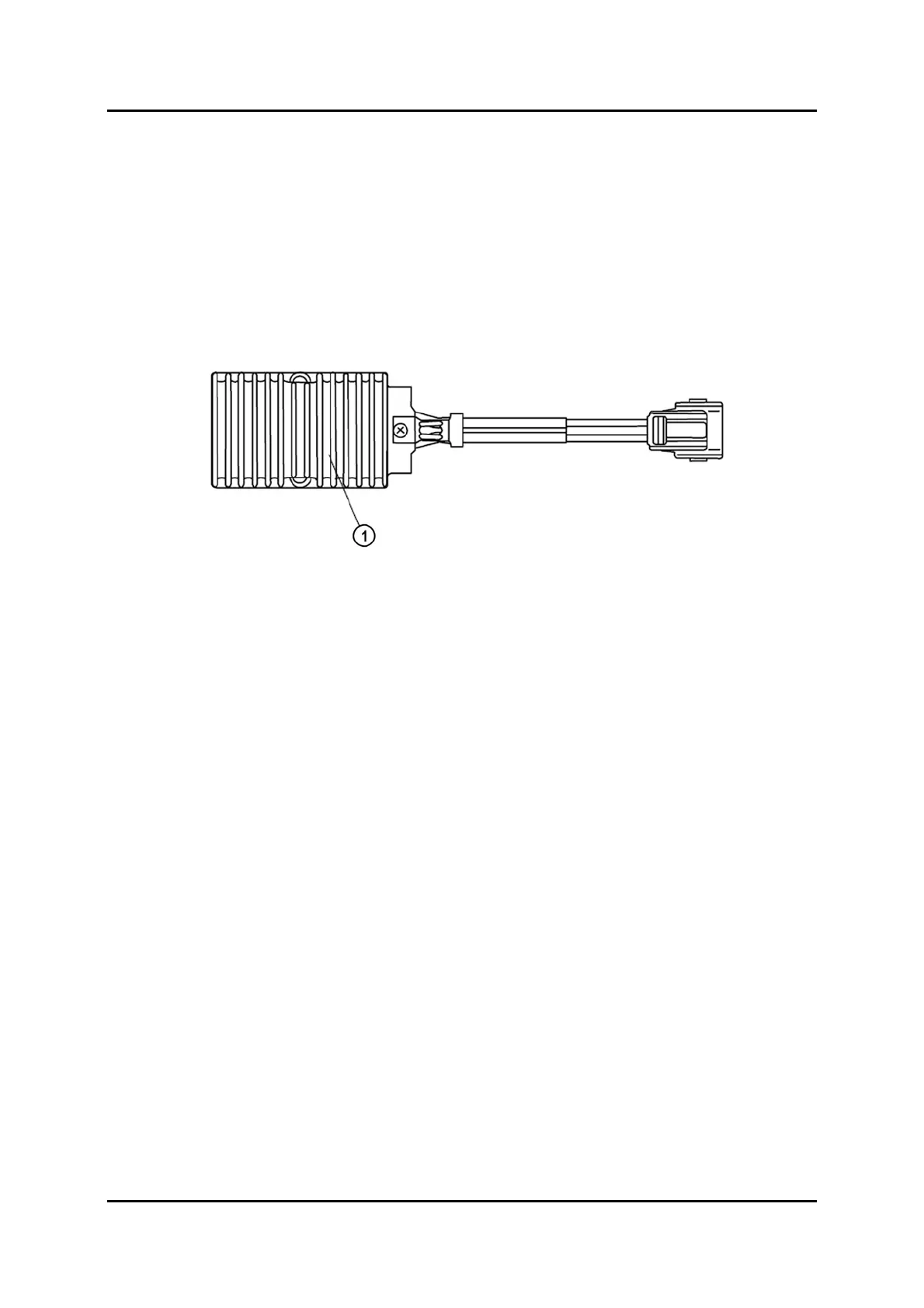

1 Fuel pump resistor
