Mazda 6 MPS 2005 - Valve Timing

Engine L3 Turbo
Valve Timing
• The adjustment range of the variable valve timing actuator has been extended.
M6-MPS_01017

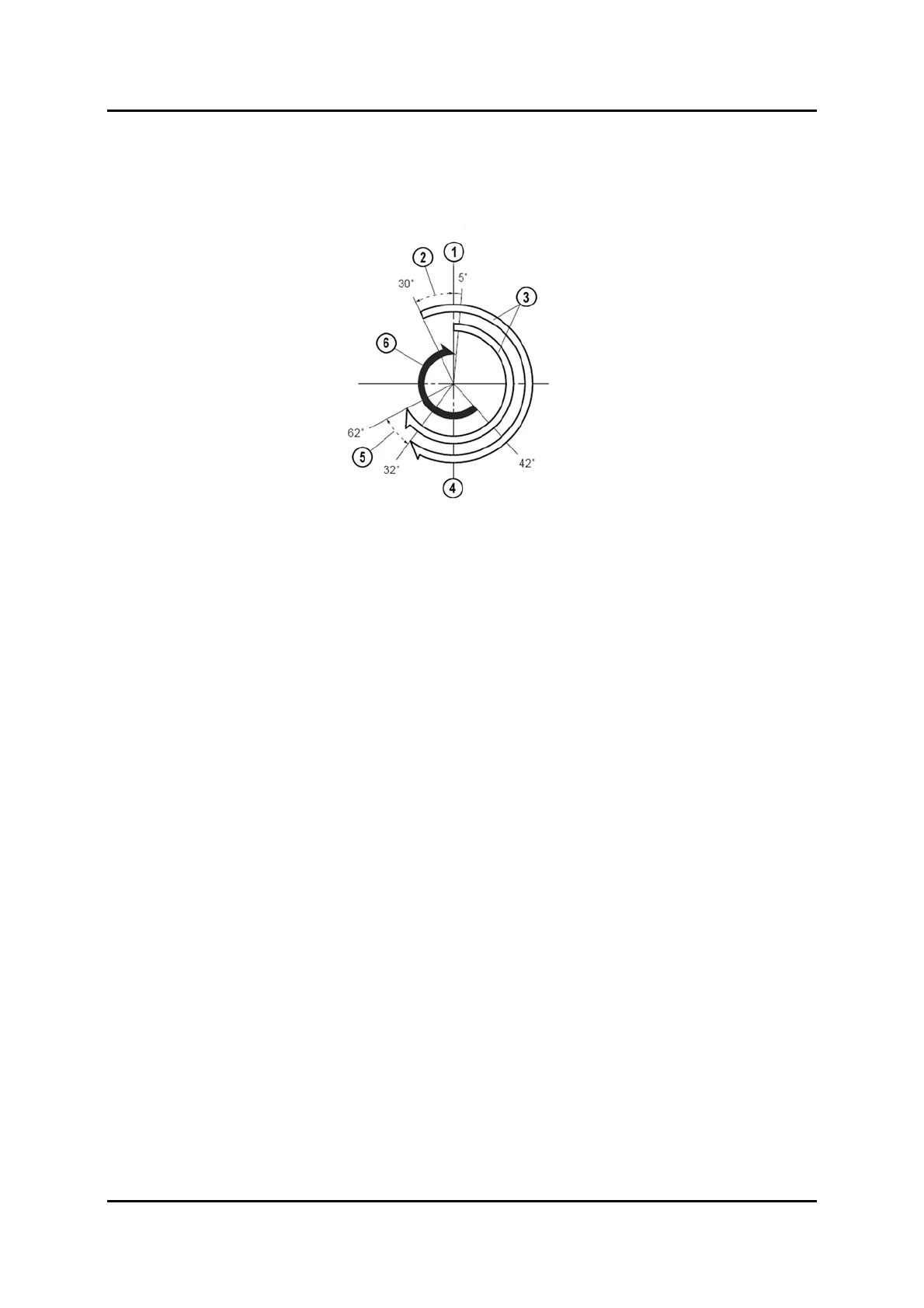

1 TDC 4 BDC (Bottom Dead Center)
2 Variable domain 5 Variable domain
3 Intake air 6 Exhaust air
Service Training Mazda6 MPS Supplement 01-15
