L3 Turbo Engine
Injector Driver Module
• The injector driver module is located on the side frame under the battery tray.
• The injector driver module can provide high voltage to drive the fuel injectors which
corresponds to a base high fuel pressure of 3...11.5 MPa (30...115 bar).
• The injector driver module provides the boosted voltage to the fuel injector according to
the fuel injection signal from the PCM.

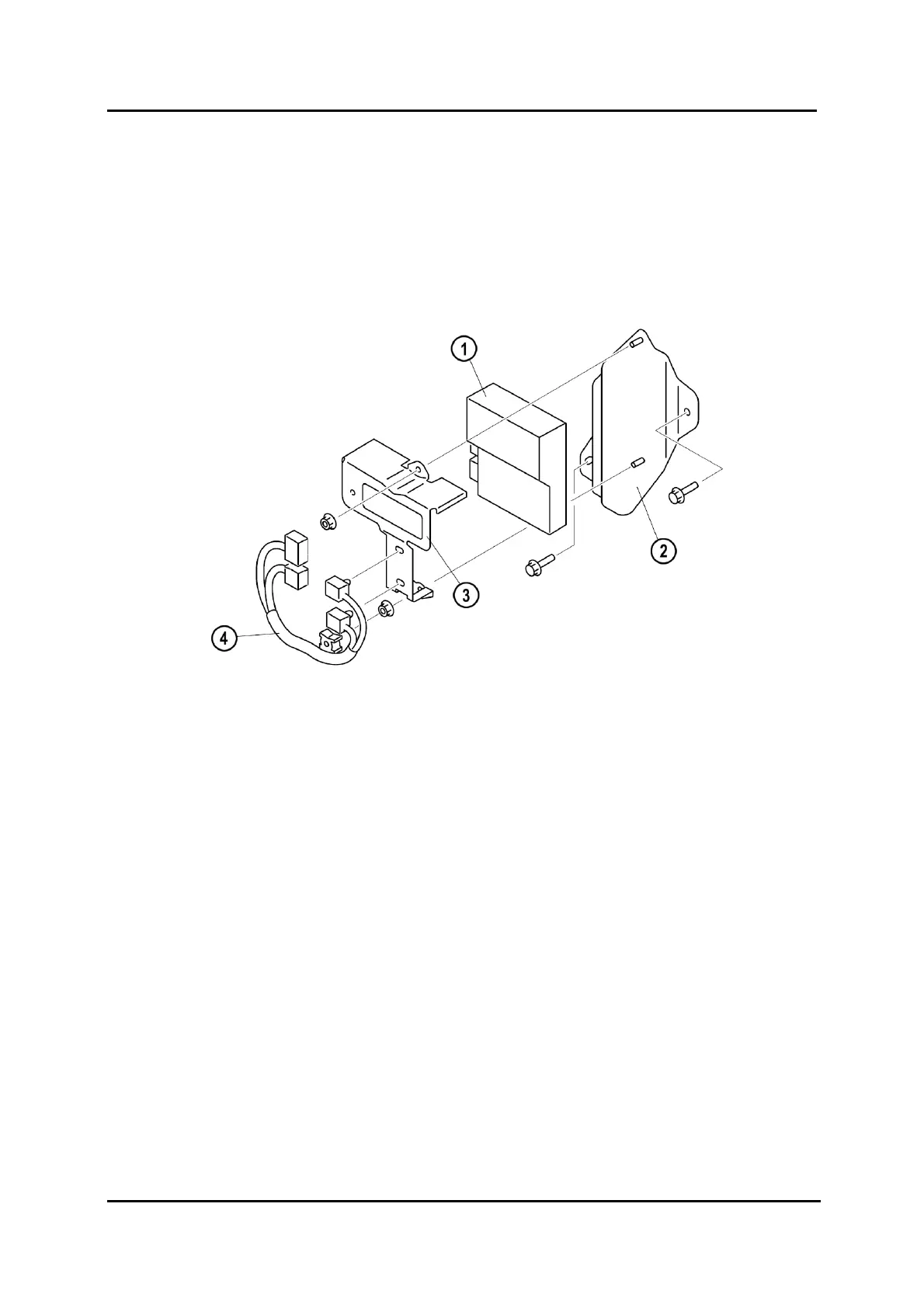

M6-MPS_01047
1 Injector driver module 3 Connector bracket
2 Injector driver module bracket 4 Wiring harness
