Mazda 6 MPS 2005 - Injector Driver Module Wiring Diagram

L3 Turbo Engine

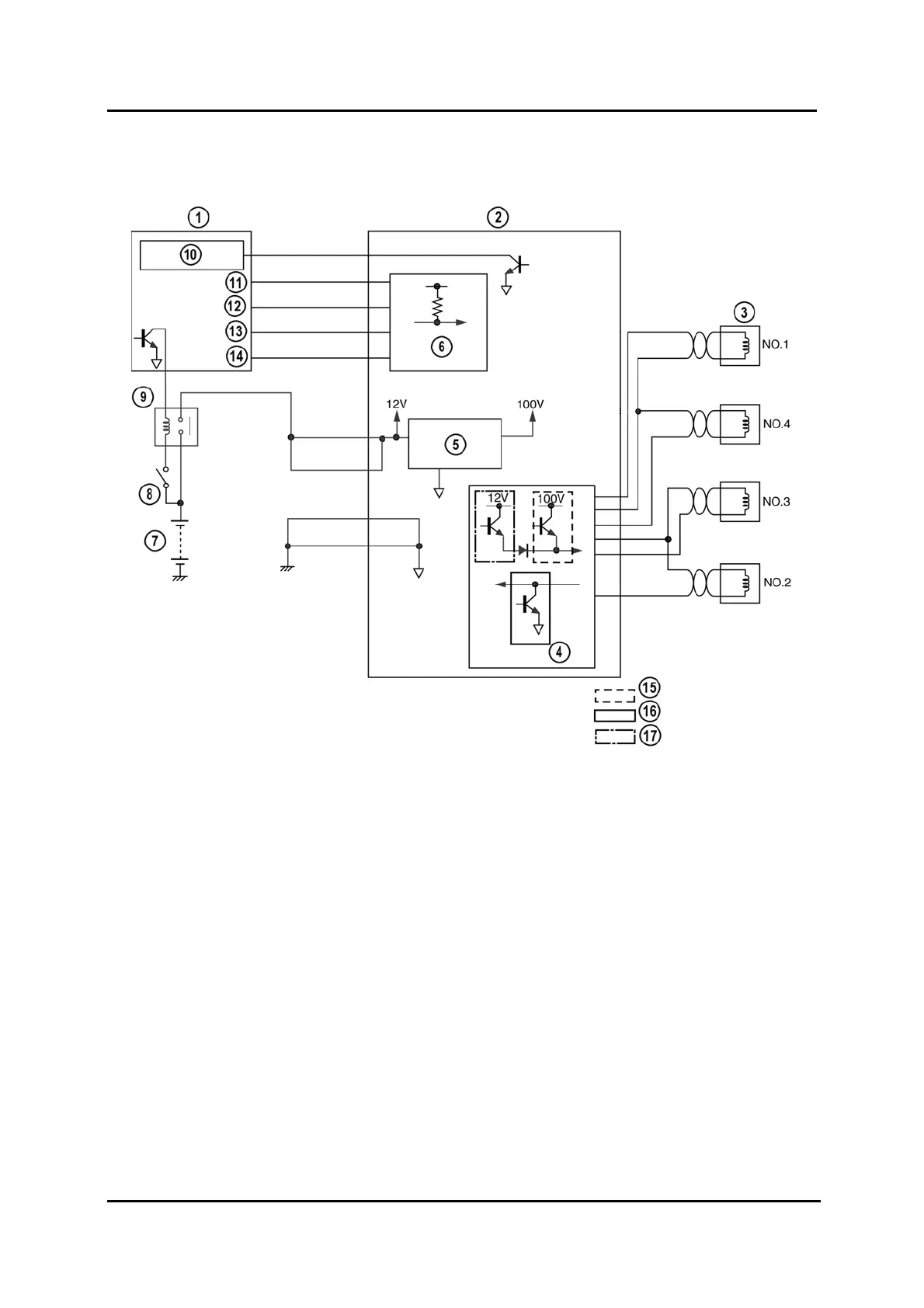

Injector Driver Module Wiring Diagram
M6-MPS_01049
1 PCM 10 Fuel injector check
2 Injector driver module 11 Injectorsignal No.1
3 Fuel injectors 12 Injectorsignal No.2
4 Output circuit 13 Injectorsignal No.3
5 Booster circuit 14 Injectorsignal No.4
6 Input circuit 15 Valve open transistor
7 Battery 16 GND (Ground)transistor
8 Ignition switch 17 Hold transistor
9 Injector driver relay
01-58 Service Training Mazda6 MPS Supplement
