L3 Turbo Engine

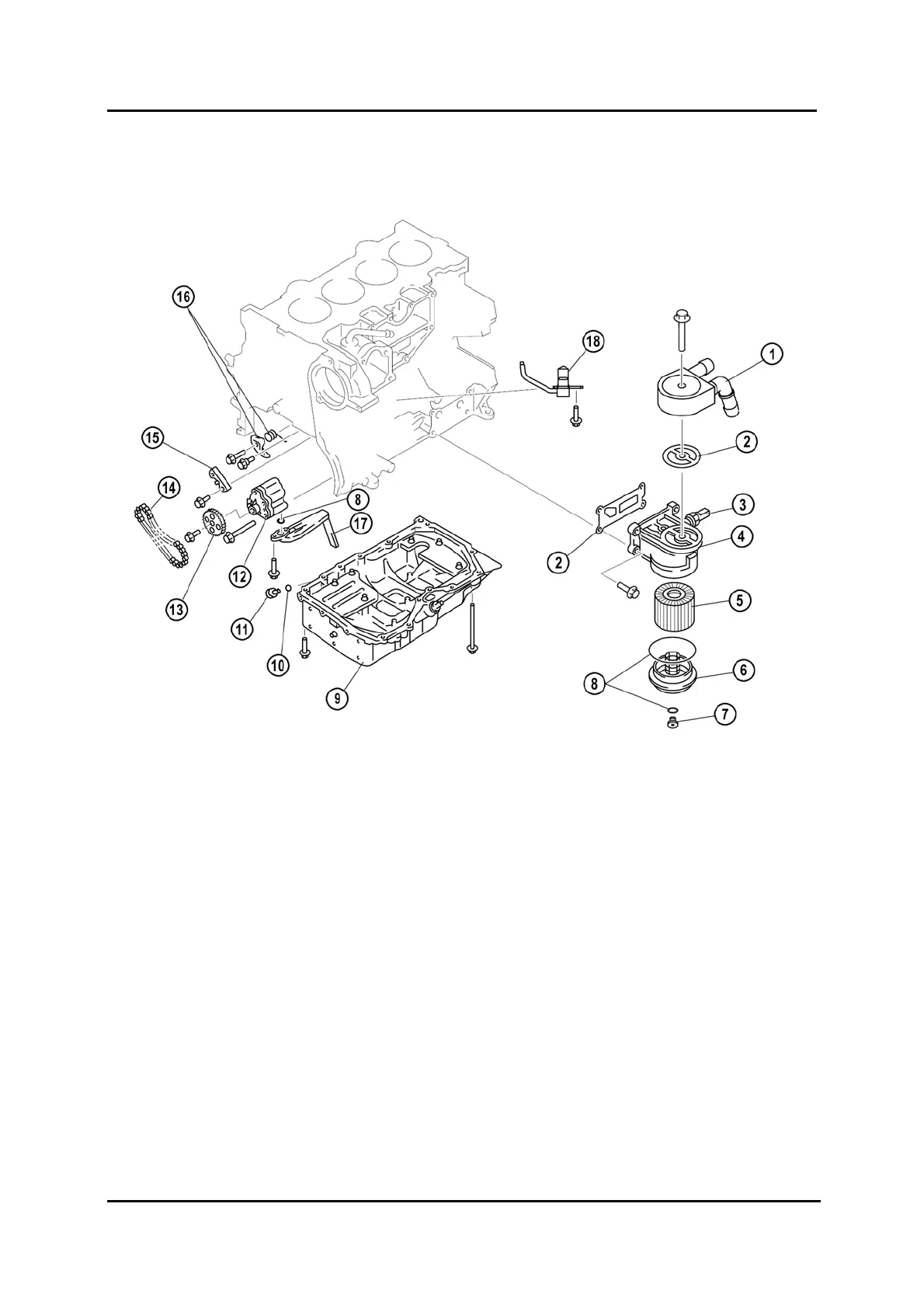

Lubrication System
M6-MPS_01018
1 Oil cooler 10 Washer
2 Gasket 11 Oil pan drain plug
3 Oil pressure switch 12 Oil pump
4 Oil filter adapter 13 Oil pump sprocket
5 Oil filter 14 Oil pump chain
6 Oil filter cover 15 Oil pump chain guide
7 Oil filter drain plug 16 Oil pump chain tensioner
8 O-ring 17 Oil strainer
9 Oil pan 18 Oil jet valve
01-16 Service Training Mazda6 MPS Supplement
