Driveline/Axle

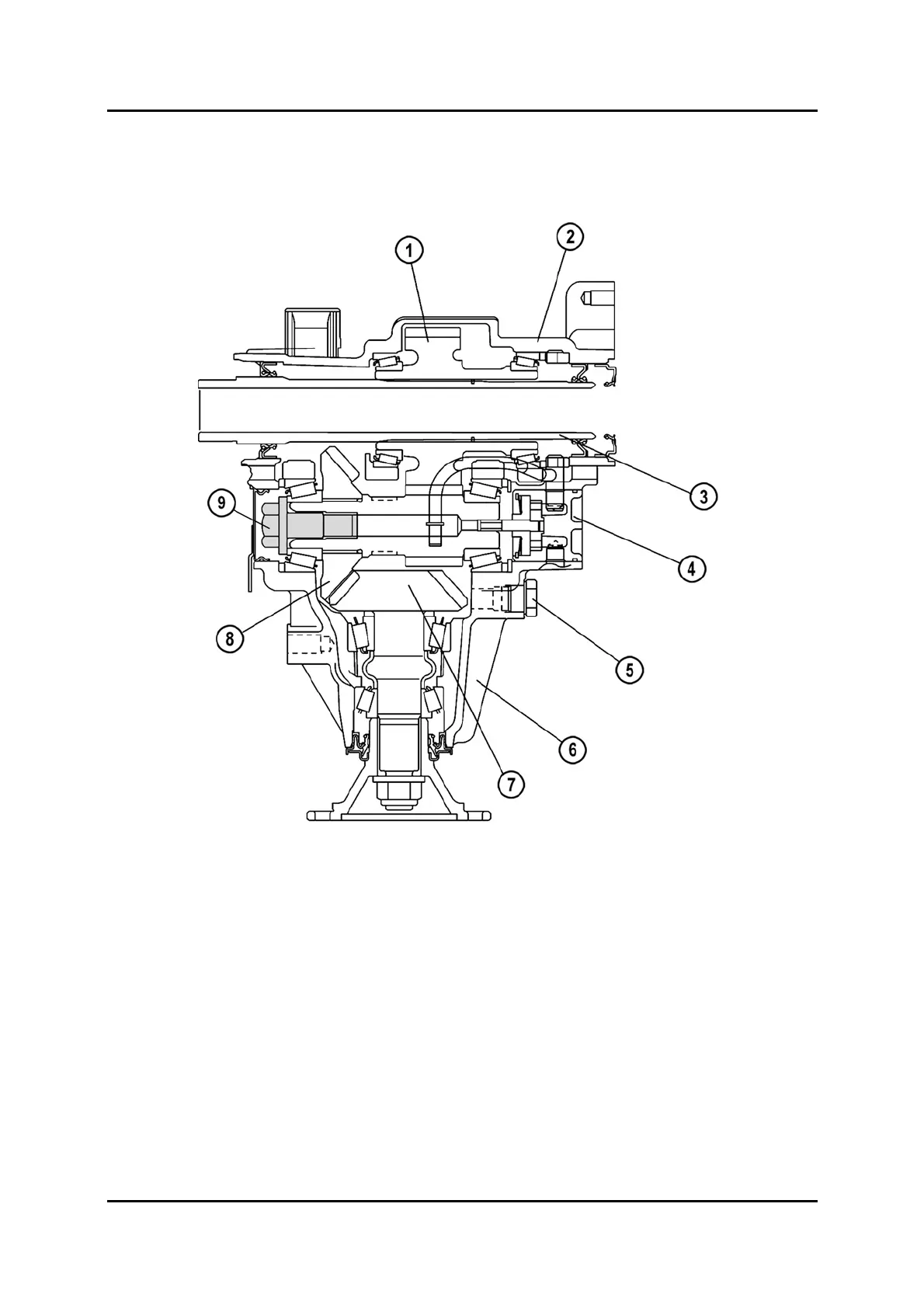

Transfer Case Cross-Sectional View
M6-MPS_03008
1 Drive gear 6 Front carrier
2 Drive gear case 7 Drive pinion gear
3 Drive gear shaft 8 Ring gear on ring gear shaft
4 Oil pump 9 Bolt (left-hand thread)
5 Oil level plug
03-4 Service Training Mazda6 MPS Supplement
