Driveline/Axle
Transfer Case
• The transfer case is mounted to the differential housing of the A26MX-R transaxle and
ensures power flow to the rear wheels.
• To ensure proper lubrication of all gears the transfer case is equipped with an oil pump.
• To shorten the warm up period and to prevent overheating the transfer case is equipped
with an oil cooler, which is connected to the engine cooling system.

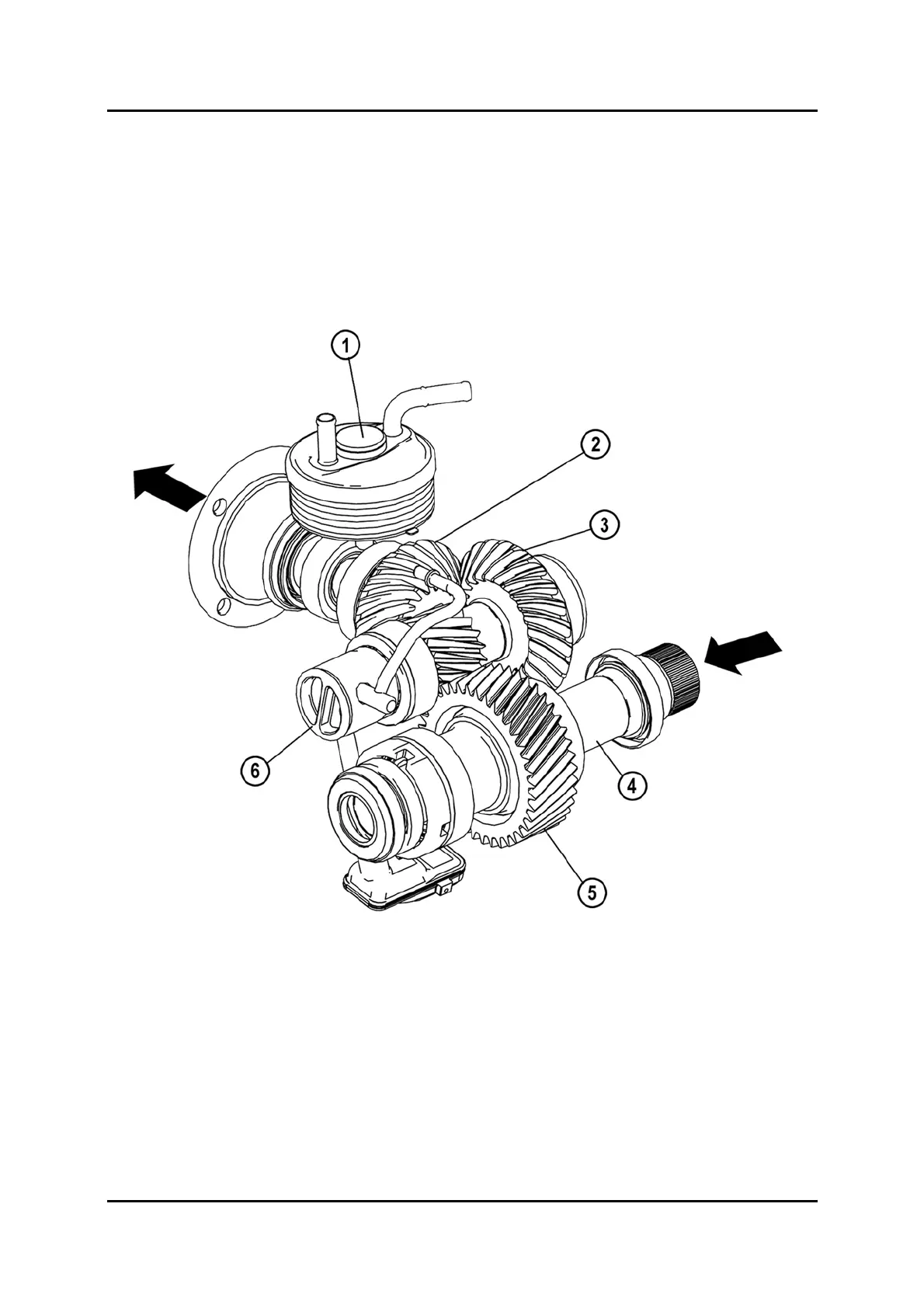

M6-MPS_03006
1 Oil cooler 4 Drive gear shaft
2 Drive pinion gear 5 Drive gear
3 Ring gear 6 Oil pump
Service Training Mazda6 MPS Supplement 03-3
