L3 Turbo Engine
Camshafts
• The fuel pump drive cam and new designed CMP sensor detection lobes are located at
the rear of the intake camshaft.

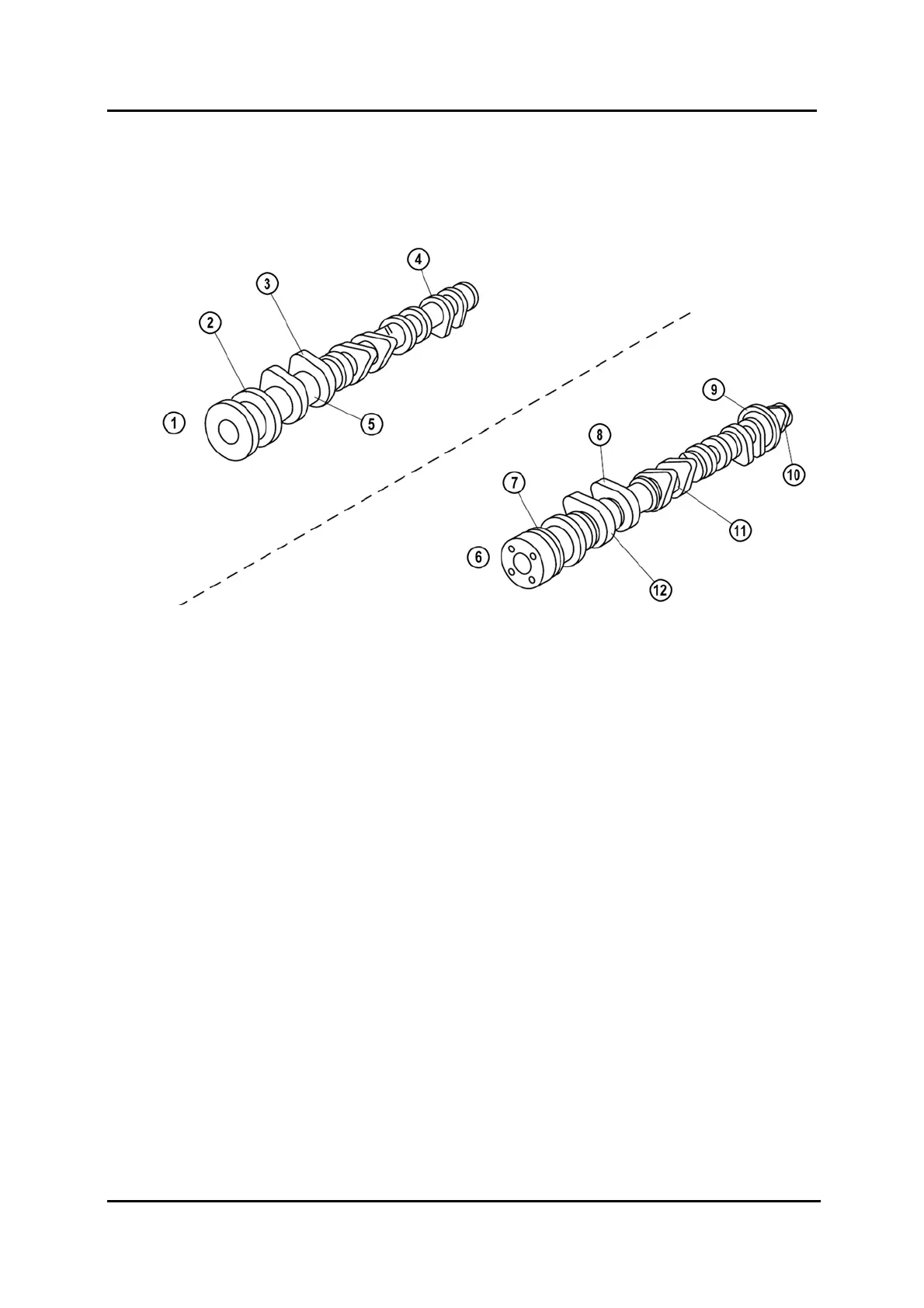

M6-MPS_01013
1 Exhaust camshaft 7 Thrust collar
2 Thrust collar 8 Cam nose
3 Cam nose 9 CMP sensor detection lobes
4 Cam heel 10 Fuel pump drive cam
5 Cam journal 11 Cam journal
6 Intake camshaft 12 Cam heel
01-12 Service Training Mazda6 MPS Supplement
