Driveline/Axle
Coupling Component

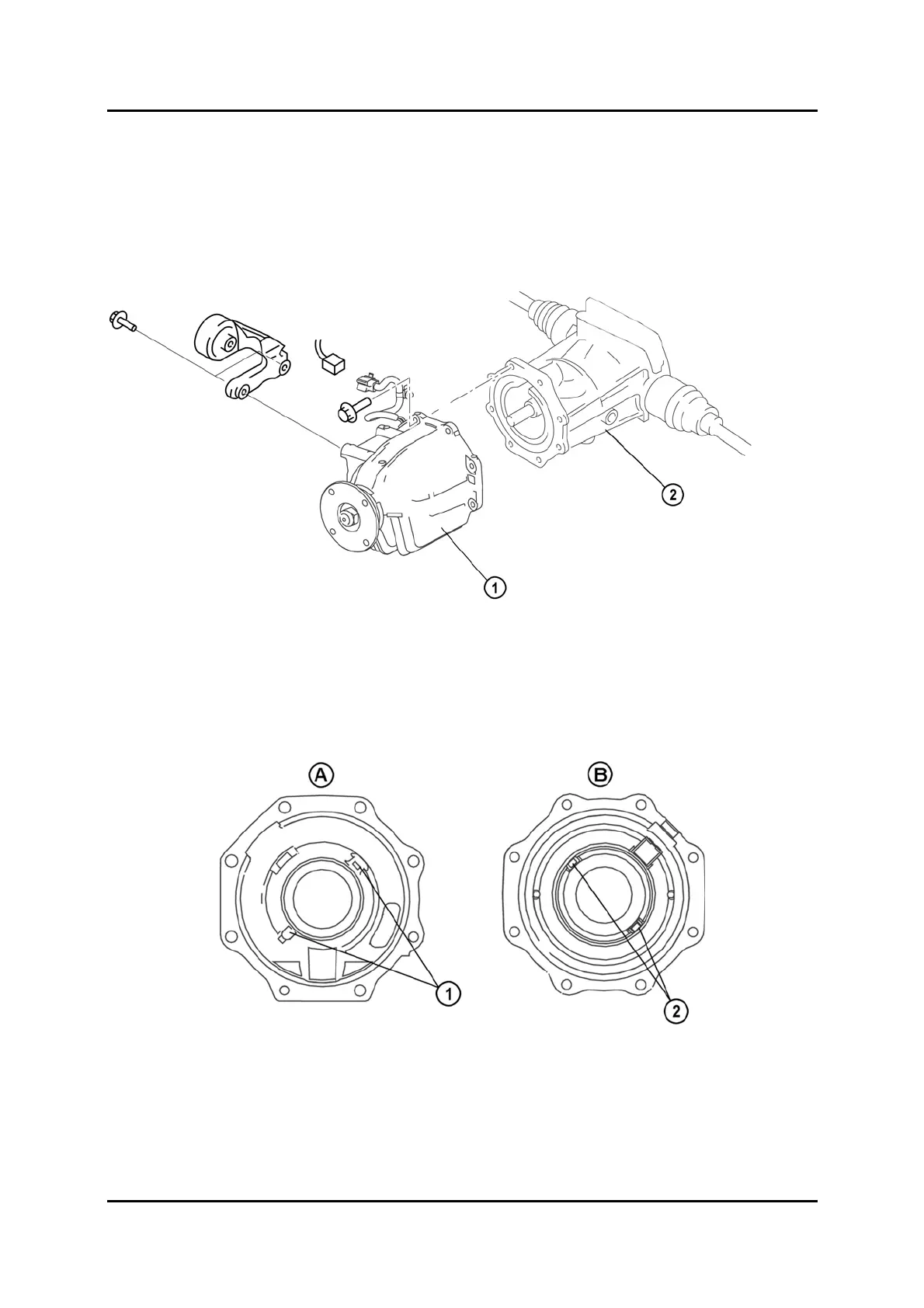

• The coupling case can be removed from the rear differential assembly, after the rear
differential oil has been drained and the exhaust system and the propeller shaft have
been removed.
M6-MPS_03021
1 Coupling case 2 Rear differential
• The installation position of the coupling component to the rear differential is determined
by two tabs on the coupling component that engage with grooves in the rear differential.
M6-MPS_03022
A Rear differential B Coupling unit
1 Grooves 2 Tabs
03-12 Service Training Mazda6 MPS Supplement
